Radial Drilling Machine

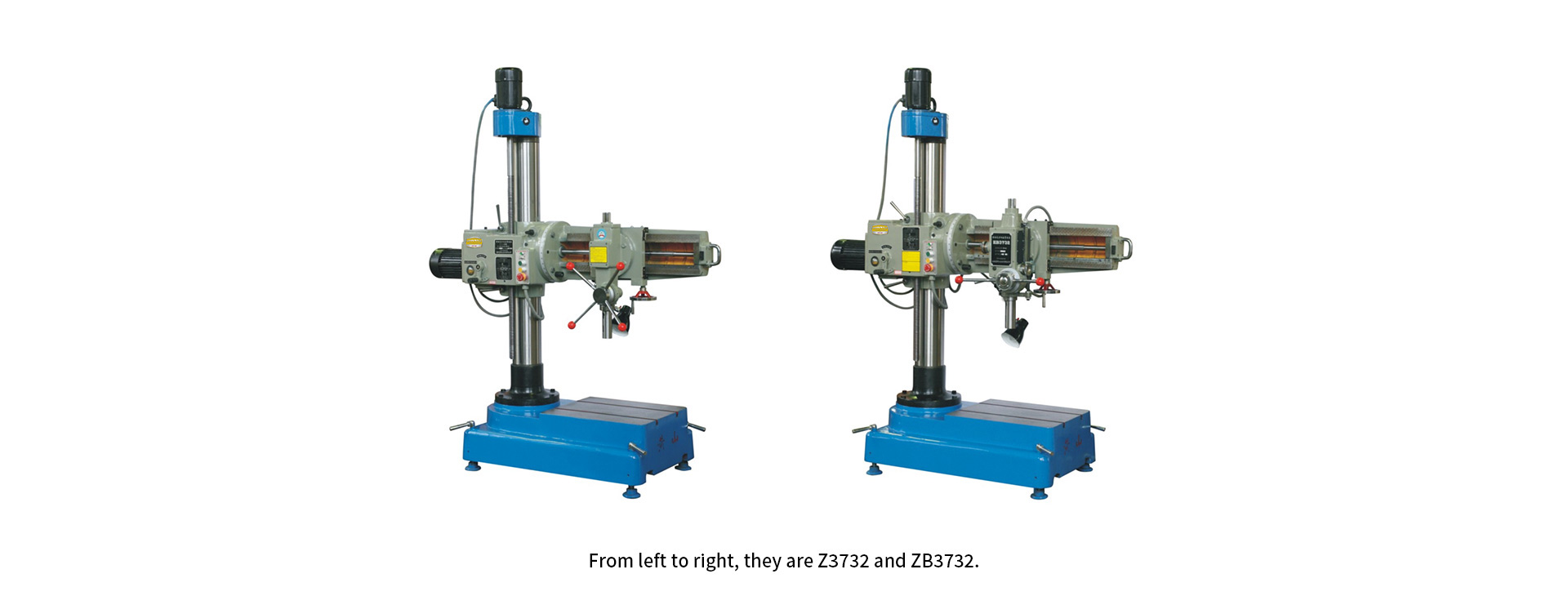

Z3732 and ZB3732.

► Workpieces can be drilled, reamed, countersunk and tapped in any direction
► Suitable for processing large and heavy parts
► The base is equipped with four adjustable supports and four rollers for easy movement
► The horizontal arm can be raised and lowered quickly, and the operation is light and flexible

Tell us about your application, operators, and work demands.
Our team will help you design the ideal solution to keep
your cost running at peak performance.

ENQUIRE ONLINE

Specifications

Model	Z3732	ZB3732
Maximum Drilling Diameter (Castings/Steel Parts) (mm)	32/25	32/25
Column Diameter (mm)	Φ160	Φ160
Maximum Spindle Travel (mm)	130	140
Spindle End Taper (mm)	MT.4	MT.4
Spindle Speed (r/min)	175-425-687-960	175-425-687-960
Spindle Feed Speed (mm/min)	/	0.07-0.15-0.24
Rocker Arm Rotation Angle (°)	360	360
Workbench Size (mm)	600*520	600*520
Distance from Spindle Axis to Column Surface (mm)	330-830	330-830
Distance from the Lower End of the Spindle to the Working Surface of the Base (mm)	30-830	20-830
Main Motor Power (kw)	1.5	1.5
Gross Weight/Net Weight (kg)	950/800	970/820
Dimension (mm)	17708502150	17708502150
Packing Size (mm)	20409802430	20409802430
