Position:Home > Products > Bench Drilling Machine >

Light Bench Drill

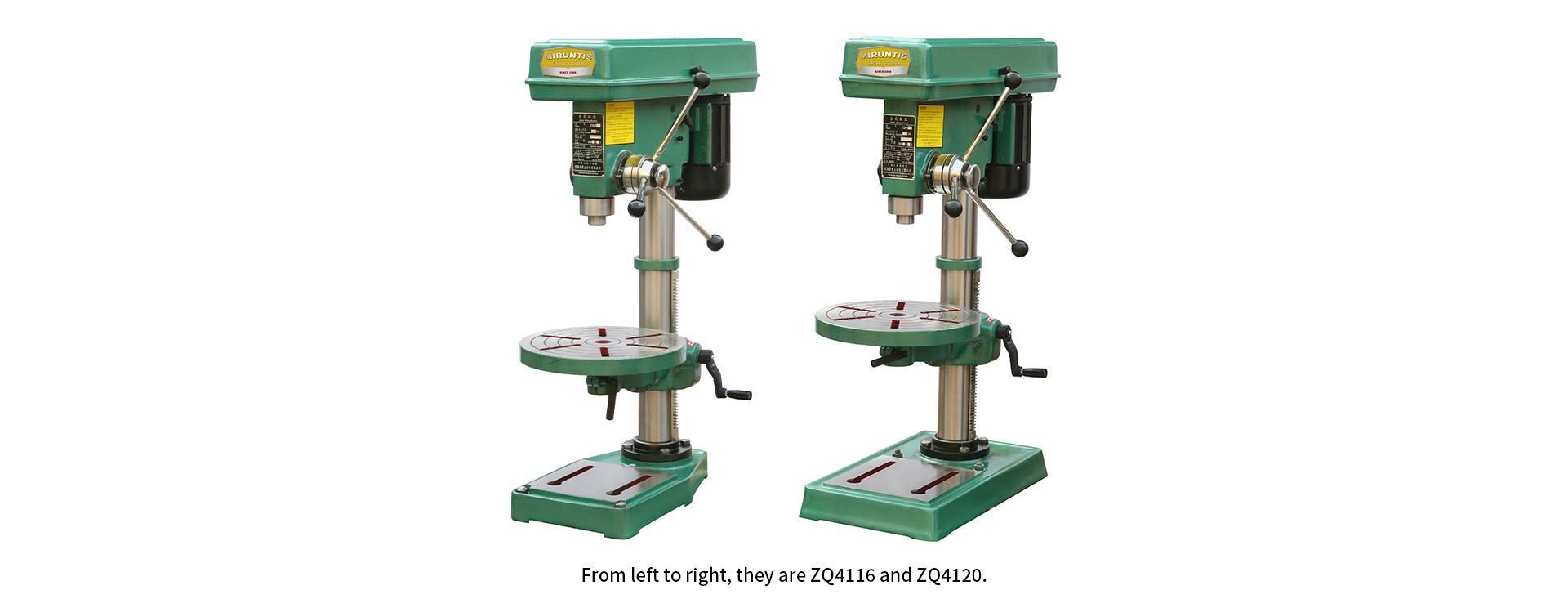

ZQ4116 and ZQ4120

Tell us about your application, operators, and work demands.
Our team will help you design the ideal solution to keep
your cost running at peak performance.

Specifications

Model	ZQ4116	ZQ4120
Maximum Drilling Diameter (mm)	16	20
Column Diameter (mm)	71	71
Maximum Spindle Travel (mm)	85	85
Spindle End Taper (mm)	MT.2 (B18)	MT.2
Spindle Speed (r/min)	480-800-1400-2400	480-800-1400-2400
Work Surface Size (mm)	Φ310	Φ310
Base Working Surface Size (mm)	210*210	225*225
Distance from Spindle Axis to Column Surface (mm)	192.5	192.5
Distance from Lower End of Spindle to Worktable (mm)	60-300	60-300
Distance from Lower End of Spindle to Base Working Surface (mm)	470	470
Electric Motor (KW)	0.55	0.55
Gross Weight/Net Weight (kg)	100/85	100/85
Packing Size (mm)	8004241012	8004241012

Besides light bench drilling machines, are you interested in other drilling machines? Or perhaps a tapping machine is the ideal product for you?
