CNC Drilling Machine

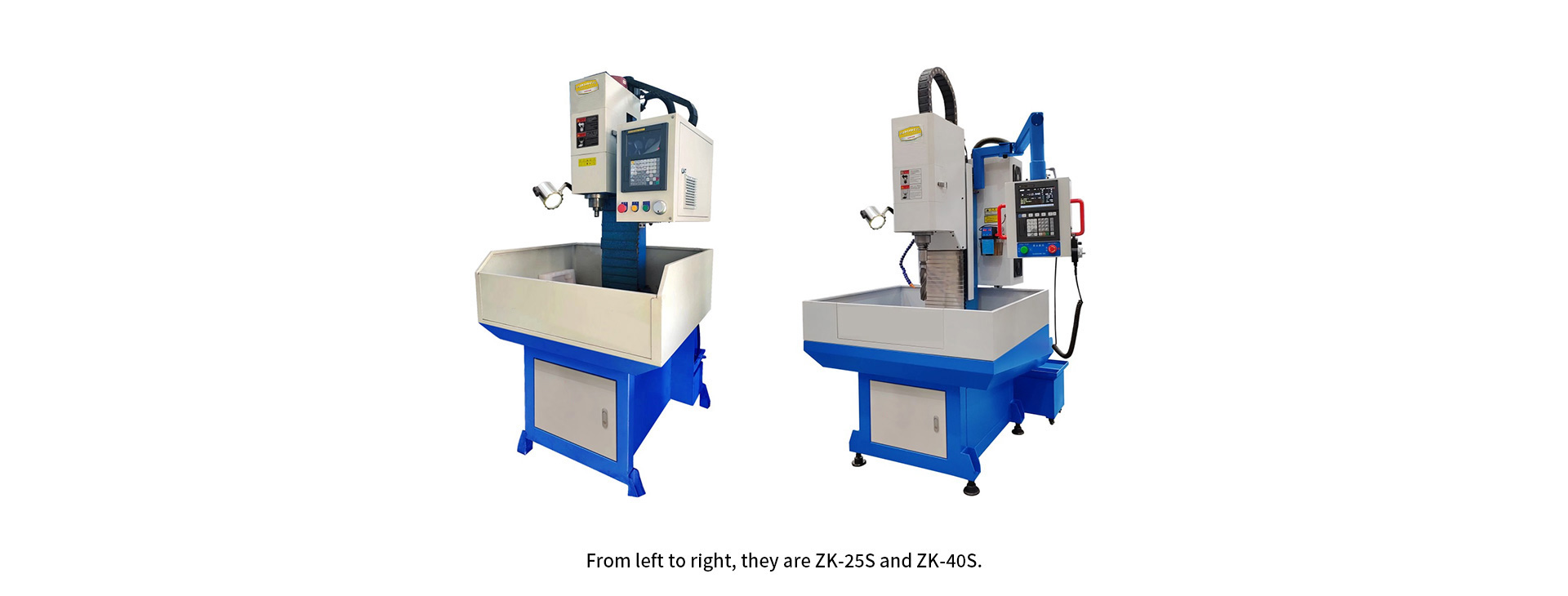

ZK-25S and ZK-40S

Tell us about your application, operators, and work demands.
Our team will help you design the ideal solution to keep
your cost running at peak performance.

Specifications

Model	ZK-25S	ZSK-25S	ZK-40S	ZSK-40S
Maximum Drilling Diameter (Castings/Steel Parts) (mm)	25/20		40/35
Maximum Tapping Diameter (Castings/Steel Parts) (mm)	/; M20/M16		/
Maximum Spindle Travel (mm)	450		500
Spindle End Taper (mm)	MT.3 (Optional BT30)		MT.4 (Optional NT40)
Spindle Speed (r/min)	100-3000		50-3000
Positioning Accuracy	/		0.02
Repeat Positioning Accuracy	0.0012		0.0012
Spindle Rapid Moving Speed (mm/min)	6000		6000
Operating System	DF-10 or Huaxing		DF-10 or Huaxing
Z-axis Guide Rail Type	Taiwan Hiwin 30 rail H grade		Taiwan Hiwin 30 Rail Extended Slider H Grade
Z-axis Ball Screw Specifications	Taiwan Hiwin 2504-4C7		Taiwan Hiwin 3210-4C7
Distance from Lower End of Spindle to Worktable (mm)	160-610		180-680
Main Motor Power (kw)	2.2(3.7)		4(5.5)
Gross Weight/Net Weight (kg)	540/500		720/680
Packing Size (mm)	120013002150		130014002350	130014002350
