CNC Drilling Machine

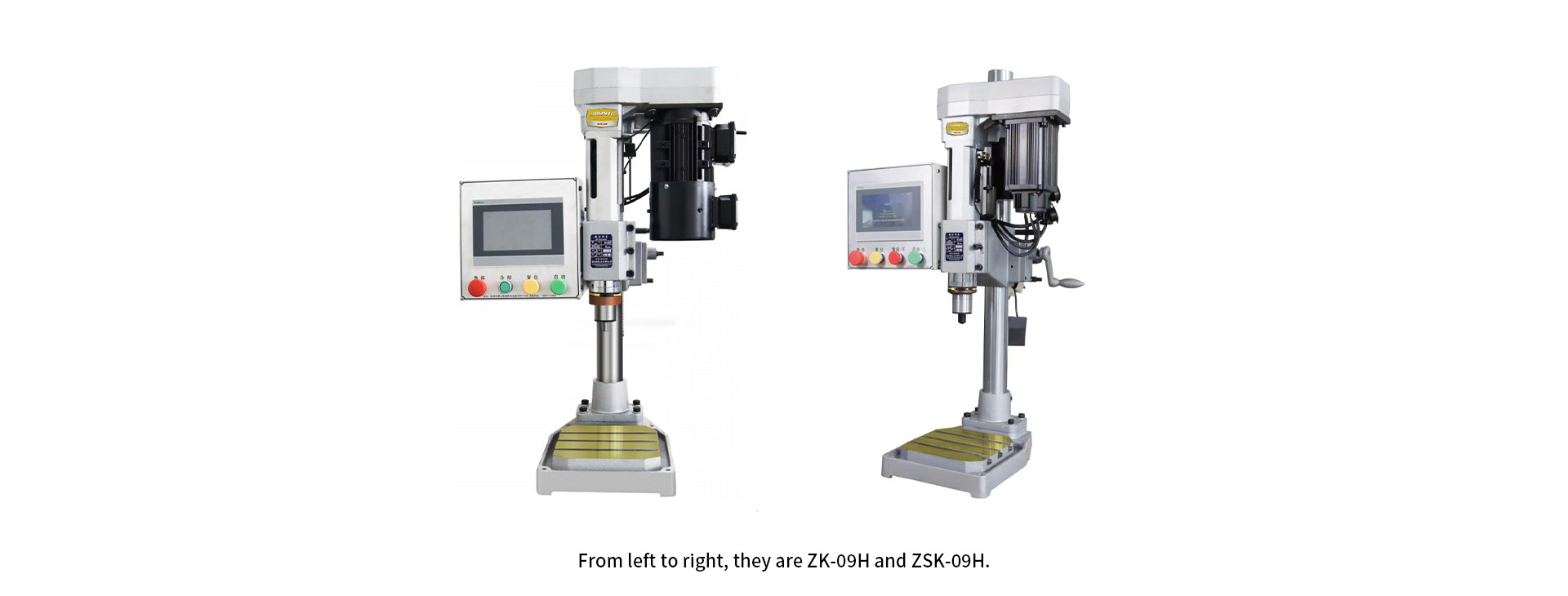

ZK-09H and ZSK-09H

Tell us about your application, operators, and work demands.
Our team will help you design the ideal solution to keep
your cost running at peak performance.

Specifications

Model	ZK-09H	ZK-13H	ZSK-09H	ZSK-13H
Maximum Drilling Diameter (Castings/Steel Parts) (mm)	9	13	9	13
Maximum Tapping Diameter (Casting/Steel Parts) (mm)	/	/	M8	M12
Maximum Spindle Travel (mm)	90	90	90	90
Spindle Diameter(mm)	50	75	50	75
Spindle End Taper (mm)	JT.6	JT.6	JT.6	JT.6
Spindle Speed (r/min)	Optional Specified Speed	50-6000 Stepless	0-3000	0-3000
Column Diameter (mm)	74	85	74	85
Distance from the Lower End of the Spindle to the Working Surface of the Base (mm)	50-500	50-500	50-500	50-500
Base Working Surface Size (mm)	220*235	220*235	220*235	220*235
Main Motor Power (kw)	1.1	1.1	Servo 1.8	Servo 2.3
Feed Motor Power (kw)	Servo 0.75	Servo 0.75	Servo 0.75	Servo 1
Feeding Method	High Precision Ball Screw Linear Chain	High Precision Ball Screw Linear Chain	High Precision Ball Screw Linear Chain	High Precision Ball Screw Linear Chain
Power Head Model	ZK-74	ZK-92	ZK-74	ZK-92
Gross Weight/Net Weight (kg)	120/100	155/130	120/100	155/130
Packing Size (mm)	8007501050	8007501050	8007501050	8007501050
