Radial Drilling Machine

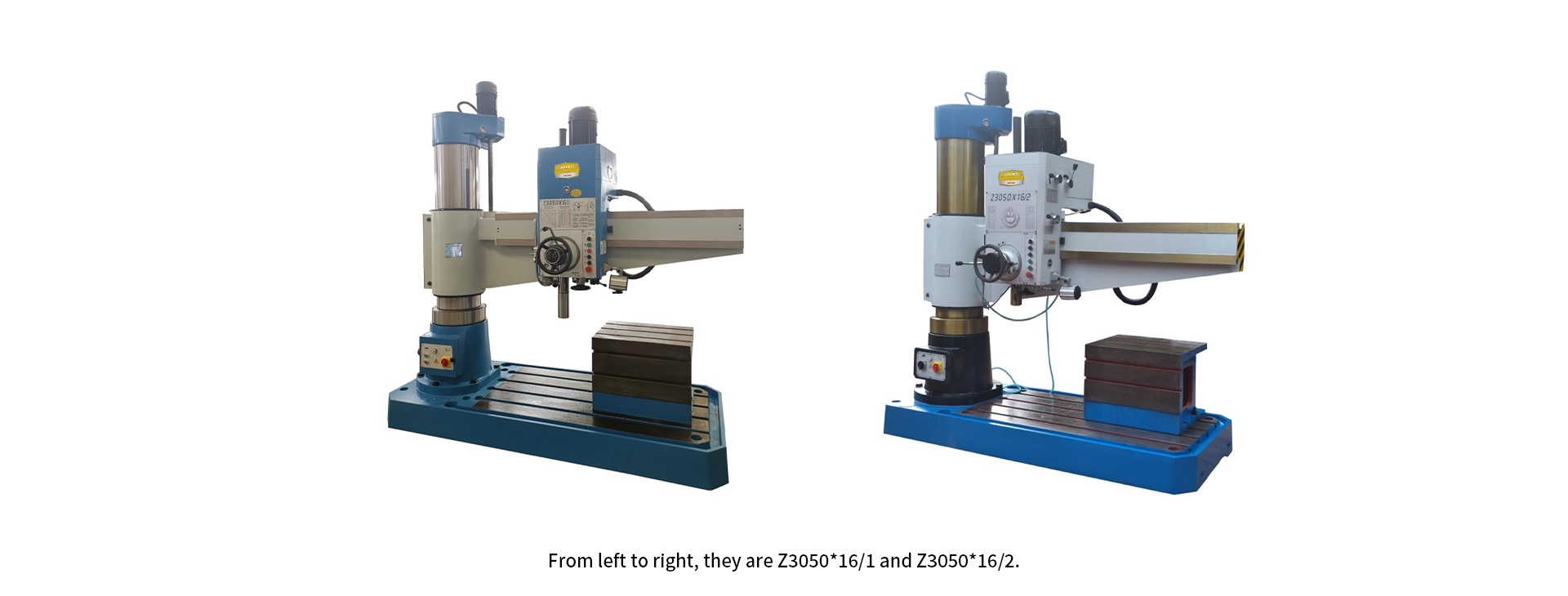

Z3050*16/1 and Z3050*16/2.

► Mechanical clamping, mechanical speed change
► Automatic feed, travel limit

Tell us about your application, operators, and work demands.
Our team will help you design the ideal solution to keep
your cost running at peak performance.

Specifications

Model	Z3050*16/1	Z3050*16/2
Maximum Drilling Diameter (Castings/Steel Parts) (mm)	50	50/45
Column Diameter (mm)	Φ350	Φ300
Distance from Spindle End to Worktable Surface (mm)	320-1220	260-1150
Distance from Spindle End to Column Generatrix (mm)	350-1600	360-1600
Spindle Travel (mm)	315	280
Spindle End Taper (mm)	MT.5	MT.5
Spindle Speed Range (r.p.m)	25-2000	78-1100
Spindle Speed Level	16	16
Spindle Feed Range (r/min)	0.04-3.2	0.04-3.2
Spindle Feed Level	16	6
Rocker Arm Rotation Angle (°)	± 180	± 90
Main Motor Power (kw)	4	4
Lifting Motor Power (kw)	1.5	1.5
Machine Weight (kg)	3300	2600
Dimension (mm)	250010702840	21509502500

Besides radial drilling machine, are you interested in other drilling machines? Or perhaps a tapping machine is the ideal product for you?

Talk to Our Team to Arrange a Personal Consultation Today
