Position:Home > Products > Drilling Machine >

Vertical Drilling Machine

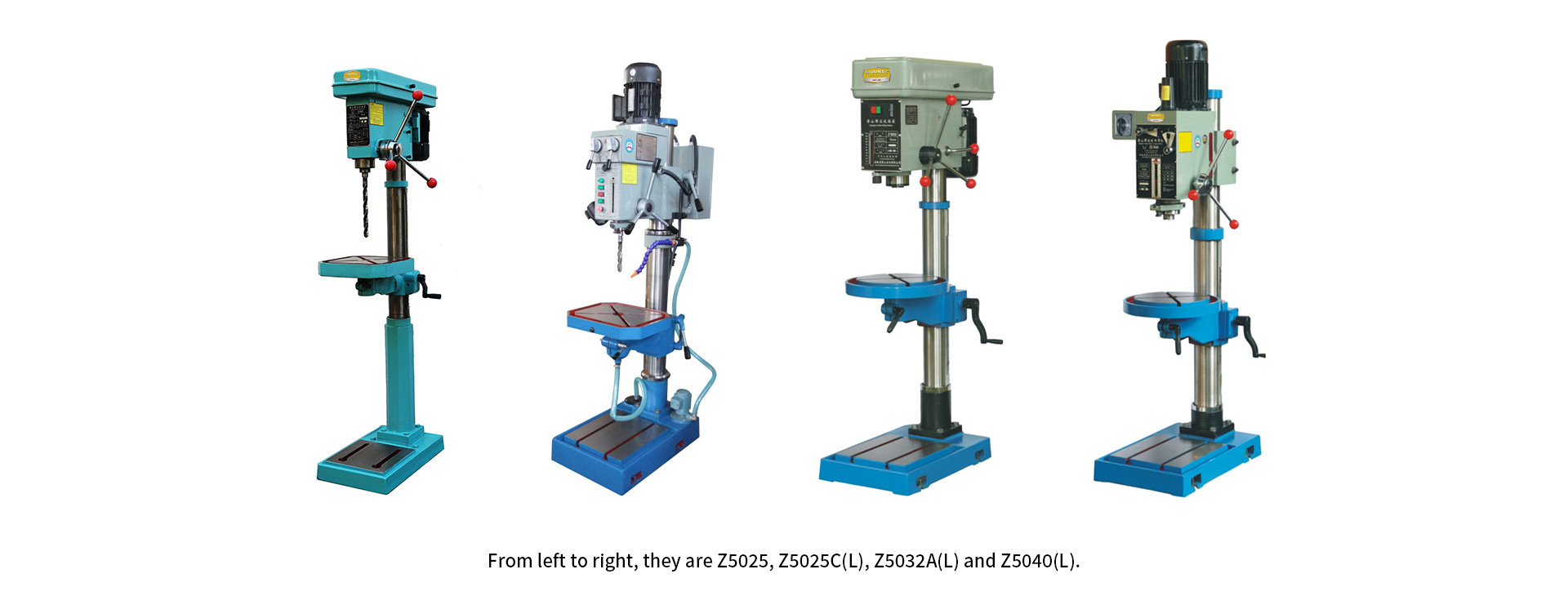

Z5025, Z5025C(L), Z5032A(L) and Z5040(L).

Tell us about your application, operators, and work demands.
Our team will help you design the ideal solution to keep
your cost running at peak performance.

Specifications

Model	Z5025	Z5025C(L)	Z5032A(L)	Z5040(L)	Z5050(S)
Maximum Drilling Diameter (mm)	25	25	31.5	40/28	50/45
Column Diameter (mm)	80	100	100	115	140
Maximum Spindle Travel (mm)	110	110	110	120	150
Spindle End Taper (mm)	MT.3	MT.3	MT.3	MT.4	MT.4
Spindle Speed (r/min)	250-300-420-620-740-850-1400-1880-2600	125-215-435-825-1400-2825	140-220-320-370-460-550-1100-1170-1780	95-170-280-540-960-1600	70-150-260-370-825-1430 (45-100-170-245-550-950)
Work Surface Size (mm)	230*230	330*400	Φ320	Φ320 (320*320)	440*540
Base Working Surface Size (mm)	260*260	320*350	320*350	350*380	400*415
Distance from Spindle Axis to Column Surface (mm)	208.5	240	235	260	315
Distance from Lower End of Spindle to Worktable (mm)	55-435	0-650	60-590	0-720	0-607
Distance from Lower End of Spindle to Base Working Surface (mm)	1087	865-1100	1015	765-1080	912-1200
Electric Motor (KW)	0.75	0.75	1.1	1.1	2.2 (2.2/1.5)
Gross Weight/Net Weight (kg)	145/115	370/350	320/270	348/300	645/580
Packing Size (mm)	8004241632	8505261813	9005261723	7806781714	9007262013
L: With cooling system S: Two-speed motor
