CNC Drilling Machine

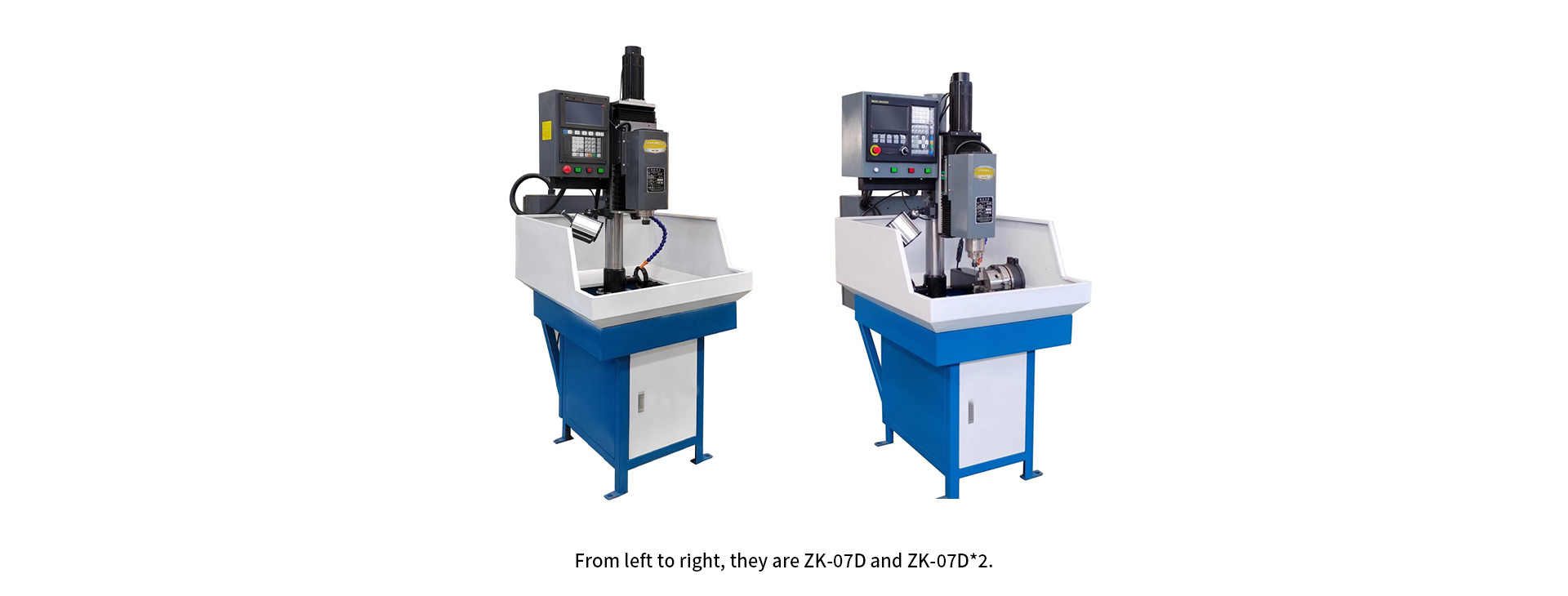

ZK-07D and ZK-07D*2

Tell us about your application, operators, and work demands.
Our team will help you design the ideal solution to keep
your cost running at peak performance.

Specifications

Model	ZK-07D	ZK-13D	ZK-07D*2	ZK-13D*2
Maximum Drilling Diameter (Castings/Steel Parts) (mm)	7/5	13/10	7/5	13/10
Maximum Spindle Travel (mm)	105	200	105	200
Spindle End Taper (mm)	ER11	ER20	ER11	ER20
Spindle Speed (r/min)	50-24000 Stepless	50-6000 Stepless	50-24000 Stepless	50-6000 Stepless
Feed Motor	Servo Motor 4N.m	Servo Motor 4N.m	Servo Motor 4N.m	Servo Motor 4N.m
Rotary Table Motor	/	/	Servo Motor 4N.m	Servo Motor 4N.m
Servo Rotary Table Diameter (mm)	/	/	Servo Motor 4N.m	Servo Motor 4N.m
Spindle Rapid Moving Speed (mm/min)	Servo Motor ≤ 15000	Servo Motor ≤ 15000	Servo Motor ≤ 15000	Servo Motor ≤ 15000
Positioning Accuracy (mm)	0.03	0.03	0.03	0.03
Repeat Positioning Accuracy (mm)	0.01	0.01	0.01	0.01
System	Single Axis (servo)	Single Axis (servo)	Double Axis (servo)	Double Axis (servo)
Base Working Surface Size (mm)	335*335	335*335	335*335	335*335
Distance from Spindle Axis to Column Surface (mm)	242.5	242.5	242.5	242.5
Distance from the Lower End of the Spindle to the Working Surface of the Base (mm)	260-540	260-540	260-540	260-540
Main Motor Power (kw)	1.5	2.2	1.5	2.2
Gross Weight/Net Weight (kg)	230/180	250/200	230/180	250/200
Packing Size (mm)	11857202200	11857202200	11857202200	11857202200

Besides CNC drilling machine, are you interested in other drilling machines? Or perhaps a tapping machine is the ideal product for you?
