Position:Home > Products > Bench Drilling Machine >

Industrial Bench Drill

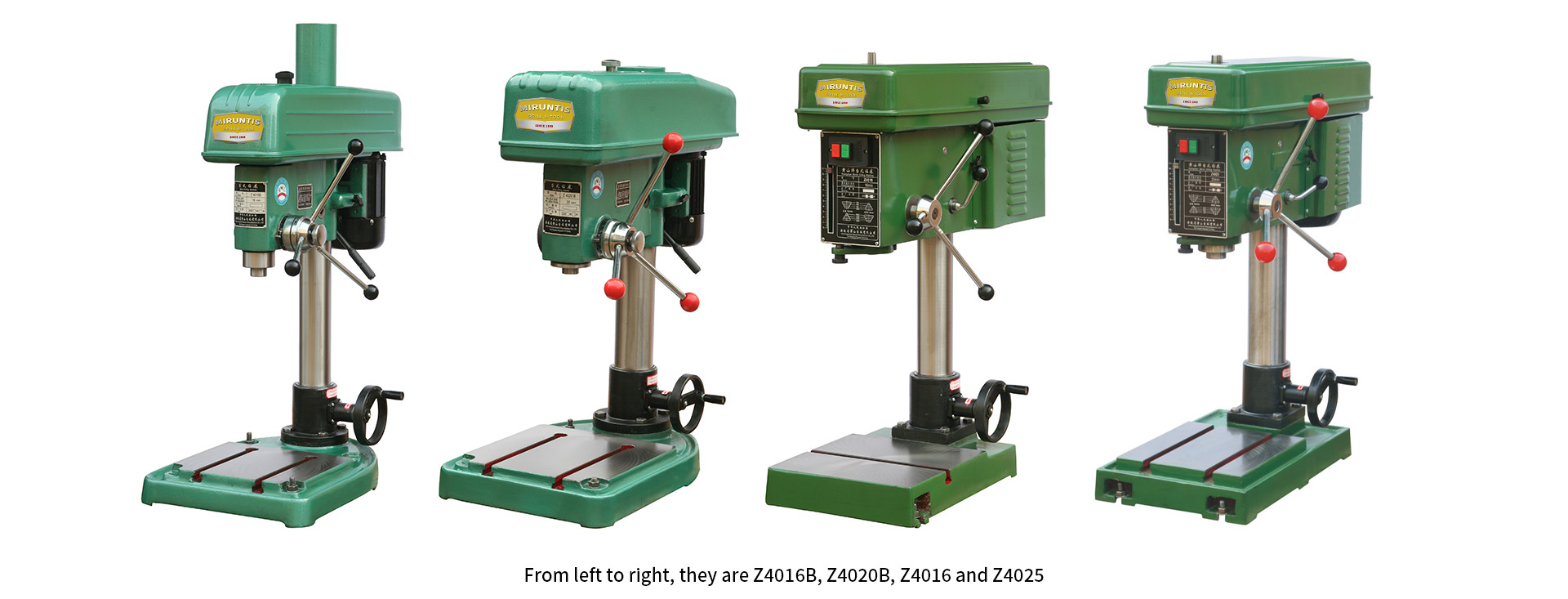

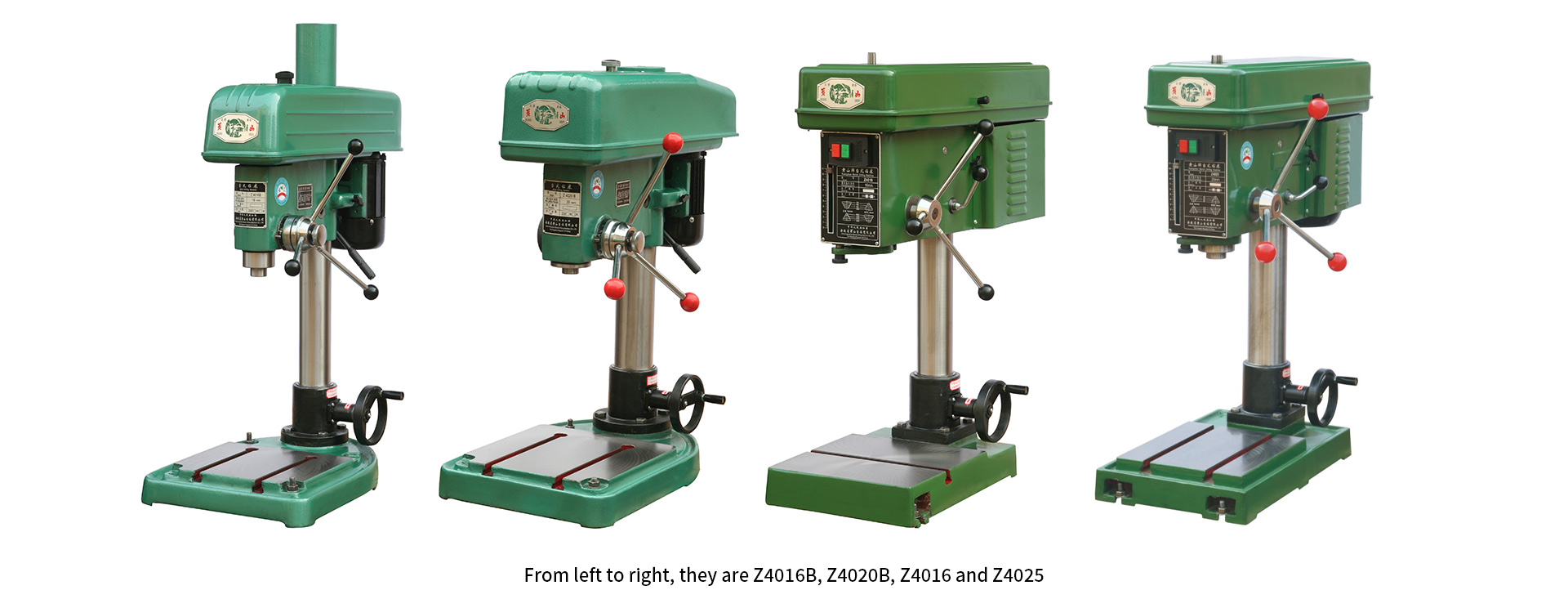

Z4016B, Z4020B, Z4016 and Z4025

Tell us about your application, operators, and work demands.
Our team will help you design the ideal solution to keep
your cost running at peak performance.

Specifications

Model	Z4016B	Z4020B	Z4016	Z4025
Maximum Drilling Diameter (mm)	16	20	16	25
Column Diameter (mm)	70	85	74	85
Maximum Spindle Travel (mm)	100	125	110	110
Spindle End Taper (mm)	MT.2	MT.2	MT.2	MT.3
Spindle Speed (r/min)	480-800-1400-2440-4100	340-570-1000-1800-3170	350-550-800-1200-1800-2700-4000-5500	300-400-550-800-1200-1800-2400-3150
Work Surface Size (mm)	/	/	/	/
Base Working Surface Size (mm)	250*300	335*335	320*314	300*280
Distance from Spindle Axis to Column Surface (mm)	193	242.5	198	192.5
Distance from Lower End of Spindle to Worktable (mm)	/	/	/	/
Distance from Lower End of Spindle to Base Working Surface (mm)	220-390	260-460	245-415	310-480
Electric Motor (KW)	0.55	0.75	0.55	0.75
Gross Weight/Net Weight (kg)	105/90	140/120	120/105	125/110
Packing Size (mm)	800424812	860476893	800424812	800424962

Besides industrial type bench drilling machines, are you interested in other drilling machines? Or perhaps a tapping machine is the ideal product for you?
