Drilling and Tapping Machine

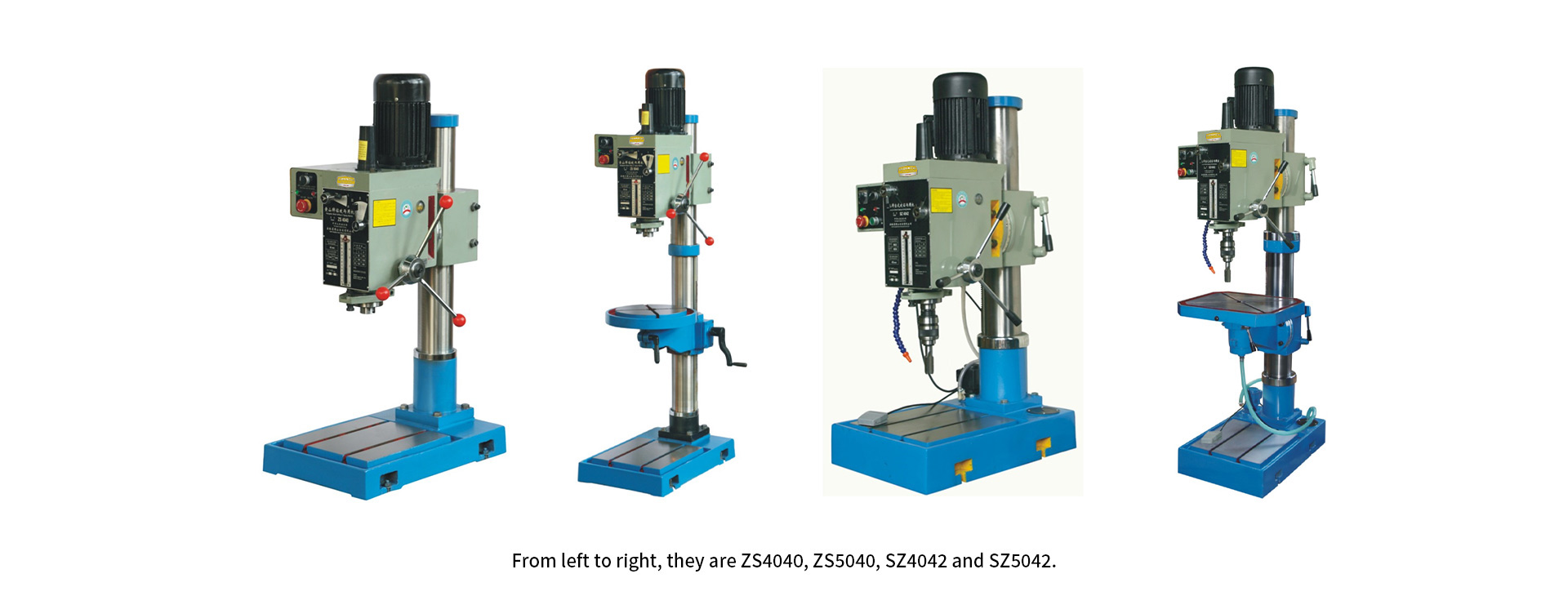

ZS4040, ZS5040, SZ4042 and SZ5042

Tell us about your application, operators, and work demands.
Our team will help you design the ideal solution to keep
your cost running at peak performance.

Specifications

Model	ZS4040	ZS5040	ZS4042	ZS5042
Maximum Drilling Diameter (Castings/Steel Parts) (mm)	40/28	40/28	45/40	45/40
Maximum Tapping Diameter (Castings/Steel Parts) (mm)	M30/M24	M30/M24	M42/M36	M42/M36
Column Diameter (mm)	115	115	140	140
Maximum Spindle Travel (mm)	120	120	150	150
Spindle End Taper (mm)	MT.4	MT.4	MT.4	MT.4
Spindle Speed (r/min)	65-120-190-370-660-1100	65-120-190-370-660-1100	45-100-170-245-550-950	45-100-170-245-550-950
Work Surface Size (mm)	/	Φ320 (320*320)	/	440*540
Base Working Surface Size (mm)	350*380	350*380	400*415	400*415
Distance from Spindle Axis to Column Surface (mm)	260	260	315	315
Distance from Lower End of Spindle to Worktable (mm)	/	0-720	/	0-607
Distance from Lower End of Spindle to Base Working Surface (mm)	90-580	765-1080	135-685	912-1200
Electric Motor (KW)	1.1	1.1	1.5	1.5
Gross Weight/Net Weight (kg)	250/220	350/300	450/380	680/580
Packing Size (mm)	7806781214	7806781714	8606461413	9007262013
			1. The maximum tapping diameter can reach M42, suitable for large-size thread processing 2. The machine tool is equipped with a foot switch for easy operation 3. Machine tool with cooling device

Besides radial drilling machine, are you interested in other drilling machines? Or perhaps a tapping machine is the ideal product for you?
