Square Column Vertical Drilling Machine

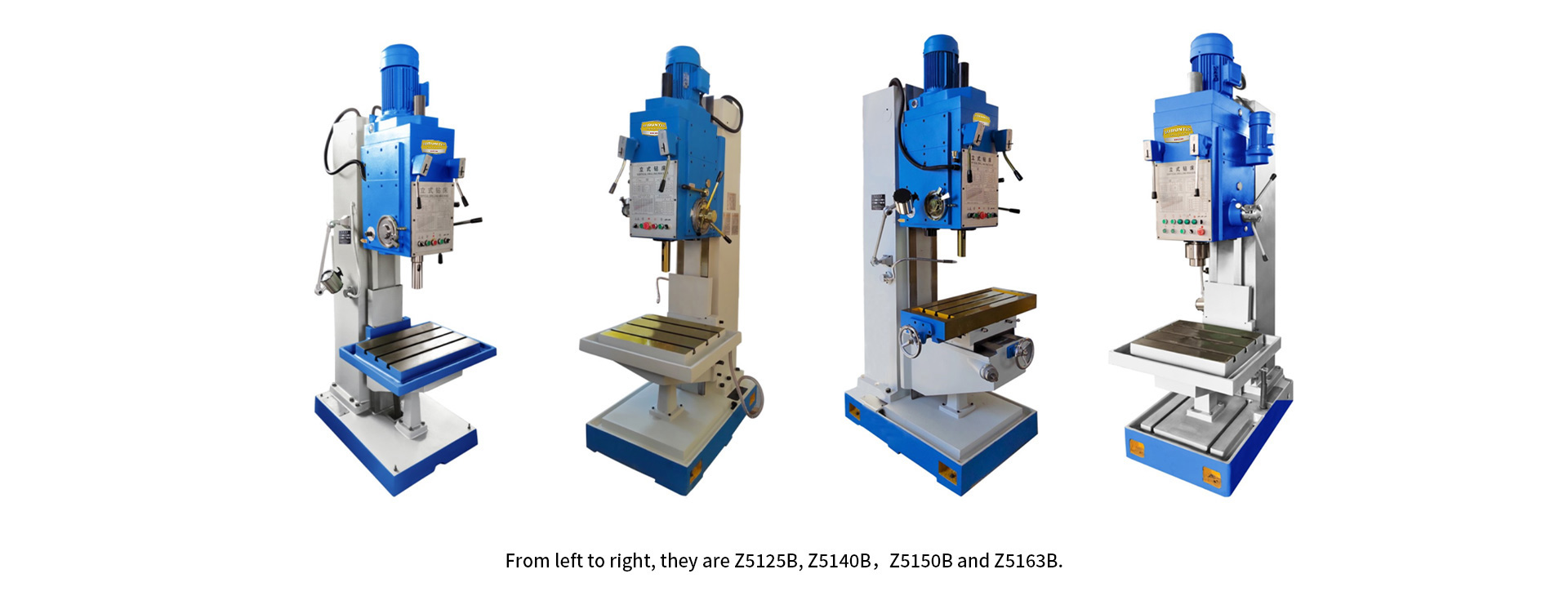

Z5125B, Z5132B, Z5140B, Z5150B, Z5163B and Z5180B

Tell us about your application, operators, and work demands.
Our team will help you design the ideal solution to keep
your cost running at peak performance.

Specifications

Model	Z5125B/Z5132B	Z5140B/Z5150B	Z5140B-1/Z5150B-1	Z5163B/Z5180B
Maximum Drilling Diameter (mm)	25/32	40/50	40/50	63/80
Spindle Hole Taper (mm)	MT.3/MT.4	MT.4/MT.5	MT.4/MT.5	MT.5/MT.6
Spindle Travel (mm)	200	250	250	250
Spindle Box Travel (Manual) (mm)	200	200	200	250
Spindle Speed Level (steps)	9	12	12	9
Spindle Speed Range (r.p.m)	50-2000	31.5-1400	31.5-1400	40-570
Feed Level (steps)	9	9	9	6
Feed Range (mm/r)	0.056-1.80	0.056-1.80	0.056-1.80	0.11-0.78
Working Surface Size (mm)	550*400	560*480	800*320	650*550
Worktable Vertical and Horizontal Travel (mm)	/	/	450*300	/
Worktable Longitudinal Travel (mm)	310	300	300	300
Maximum Distance from Spindle End to Worktable (mm)	710	750	550	850
Electric Motor (KW)	2.2	3	3	5.5
Machine Weight (kg)	950	1250	1350	2500
Machine Size (mm)	10506802010	9005261123	130012002465	14709862800

Besides square column vertical drilling machine, are you interested in other drilling machines? Or perhaps a tapping machine is the ideal product for you?
