Drilling and Milling Machine

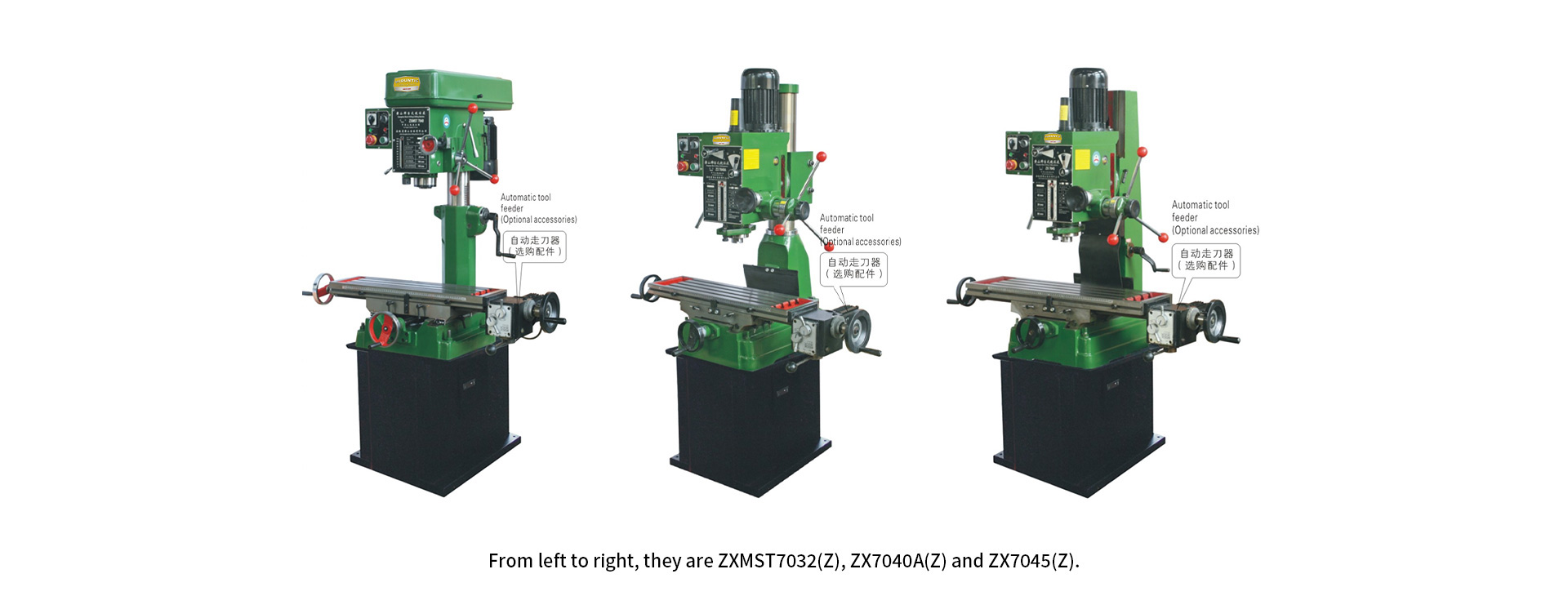

ZXMST7032(Z), ZX7040A(Z) and ZX7045(Z).

Tell us about your application, operators, and work demands.
Our team will help you design the ideal solution to keep
your cost running at peak performance.

Specifications

Model	ZXMST7032(Z)	ZXMST7040(Z)	ZX7040(Z)	ZX7045(Z)
Maximum Drilling Diameter (mm)	31.5	40	40/28	45/28
Maximum Horizontal Milling Width (mm)	80	100	80	80
Maximum Vertical Milling Diameter (mm)	18	20	28	28
Maximum Tapping Diameter (Castings/Steel Parts) (mm)	M18/M14	M20/M16	M24/M20	M24/M20
Maximum Flat Grinding Wheel Diameter (mm)	100	150	/	/
Maximum Spindle Travel (mm)	110	110	120	120
Spindle End Taper (mm)	MT.3	MT.4	MT.4	MT.4
Spindle Speed (r/min)	216-340-494-550-712-770-1100-1680-2730	216-340-494-550-712-770-1100-1680-2730	95-170-280-540-960-1600	95-170-280-540-960-1600
Distance from Spindle Axis to Column Surface (mm)	235	235	260	260
Work Surface Size (mm)	730*210	730*210	730*210	820*240
Workbench Travel (mm)	480*230	480*230	550180 (410180)	550180 (490220)
Distance from Lower End of Spindle to Worktable (mm)	218-568	218-568	90-445	0-475
Electric Motor (KW)	1.1	1.5	1.1	1.1
Gross Weight/Net Weight (kg)	420/350	440/370	430/360	440/370
Packing Size (mm)	10007801035	98010601215	10808101215	10808101165
