Position:Home > Products > Drilling Machine >

Deep Hole Drilling Machine

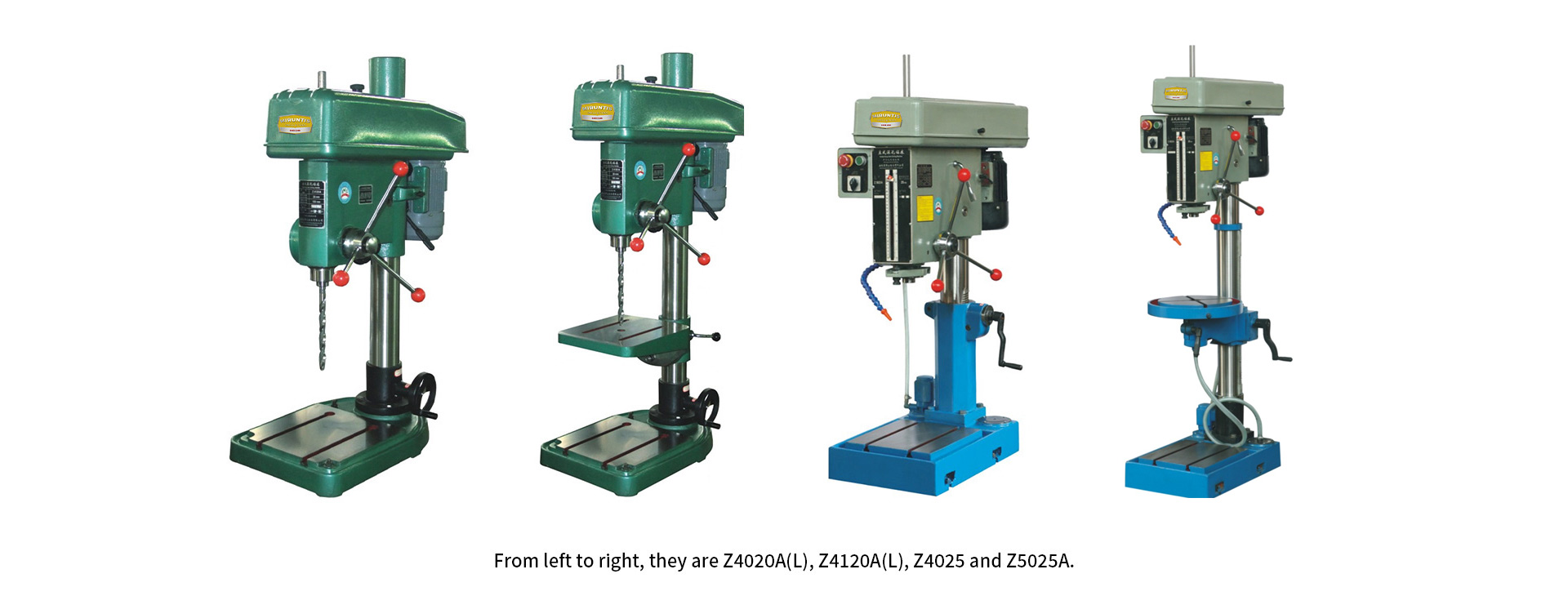

Z4020A(L), Z4120A(L), Z4025 and Z5025A.

Tell us about your application, operators, and work demands.
Our team will help you design the ideal solution to keep
your cost running at peak performance.

Specifications

Model	Z4020A (L)	Z4120A (L)	Z4025A	Z5025A
Maximum Drilling Diameter (mm)	20	20	25	25
Column Diameter (mm)	85	85	100	100
Maximum Spindle Travel (mm)	180	180	250	250
Spindle End Taper (mm)	MT.2	MT.2	MT.3	MT.3
Spindle Speed (r/min)	95-170-280-540-960-1600	95-170-280-540-960-1600	216-340-494-550-712-770-1680-1800-2730	216-340-494-550-712-770-1680-1800-2730
Work Surface Size (mm)	/	320*320 (Φ320)	/	Φ320
Base Working Surface Size (mm)	350*380	350*380	320*350	320*350
Distance from Spindle Axis to Column Surface (mm)	260	260	235	235
Distance from Lower End of Spindle to Worktable (mm)	/	0-720	/	45-580
Distance from Lower End of Spindle to Base Working Surface (mm)	90-580	765-1080	295-645	1000
Electric Motor (KW)	1.1	1.1	1.1	1.1
Gross Weight/Net Weight (kg)	260/230	360/310	300/250	330/280
Packing Size (mm)	7806781214	7806781714	9005261413	9005261813
	L: Equipped with cooling system Note: The maximum spindle travel is up to 180mm, which is suitable for deep hole processing.		L: Equipped with cooling system Note: The maximum spindle travel is up to 250mm, which is suitable for deep hole processing.

Besides deep hole drilling machine, are you interested in other drilling machines? Or perhaps a tapping machine is the ideal product for you?

Talk to Our Team to Arrange a Personal Consultation Today
