Row Drilling Machine

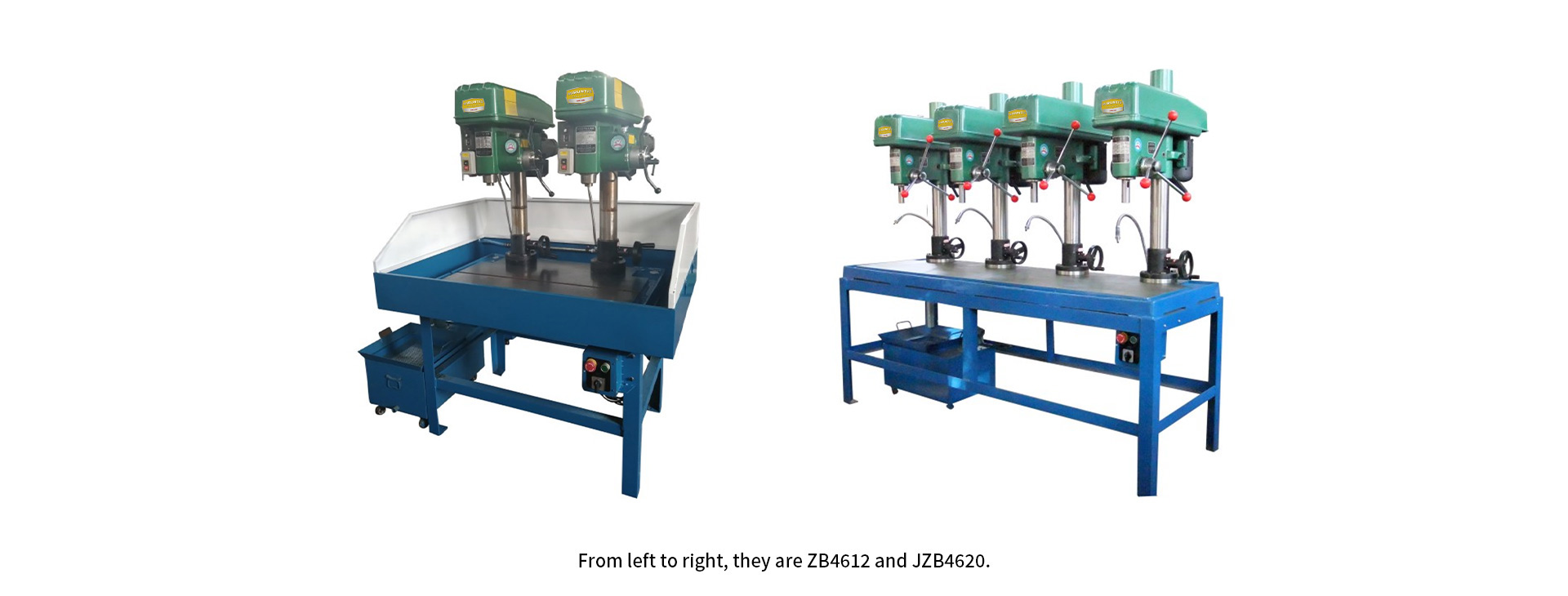

Z4612, Z4616, Z4620, Z4625, JZB4620 and JZB4625

► Specially designed and developed for continuous processing of multiple apertures and multiple processes on the same part in batch production
► With cooling and lighting system
► Bench drilling machines, drilling and tapping machines, automatic feed drilling machines, tapping machines, etc. can be combined arbitrarily according to different customer needs.
► Parameters such as column center distance, work surface height, work surface size, spindle box lifting distance, etc. can be customized according to customer needs

Tell us about your application, operators, and work demands.
Our team will help you design the ideal solution to keep
your cost running at peak performance.

ENQUIRE ONLINE

Specifications

ModelZ4612(16)*2/3/4Z4620(25)*2/3/4
Number of Axes2/3/42/3/4
Center Distance between Adjacent Columns450480
Maximum Drilling Diameter  (mm)12(16)20(25)
Column Diameter (mm)7085
Maximum Spindle Travel (mm)100125
Spindle End Taper (mm)B16 (MT.2)MT.2 (MT.3)
Spindle Speed (r/min)480-800-1400-2440-4100340-570-1000-2900-3170
Workbench Size

650*80*1000

650*80*1480

650*80*1920

650*80*1000

650*80*1480

650*80*1920

Distance from Spindle Axis to Column Surface (mm)193242.5
Distance from the Lower End of the Spindle to the Working Surface of the Base (mm)150-450200-480
Main Motor Power (kw)0.550.75 (1.1)
Net Weight (kg)500/700/1000700/1000/1300
Dimension (mm)

1000*760*1600

1480*760*1600

1920*760*1600

1000*790*1840

1480*790*1840

1920*790*1840
