Drilling and Milling Machine

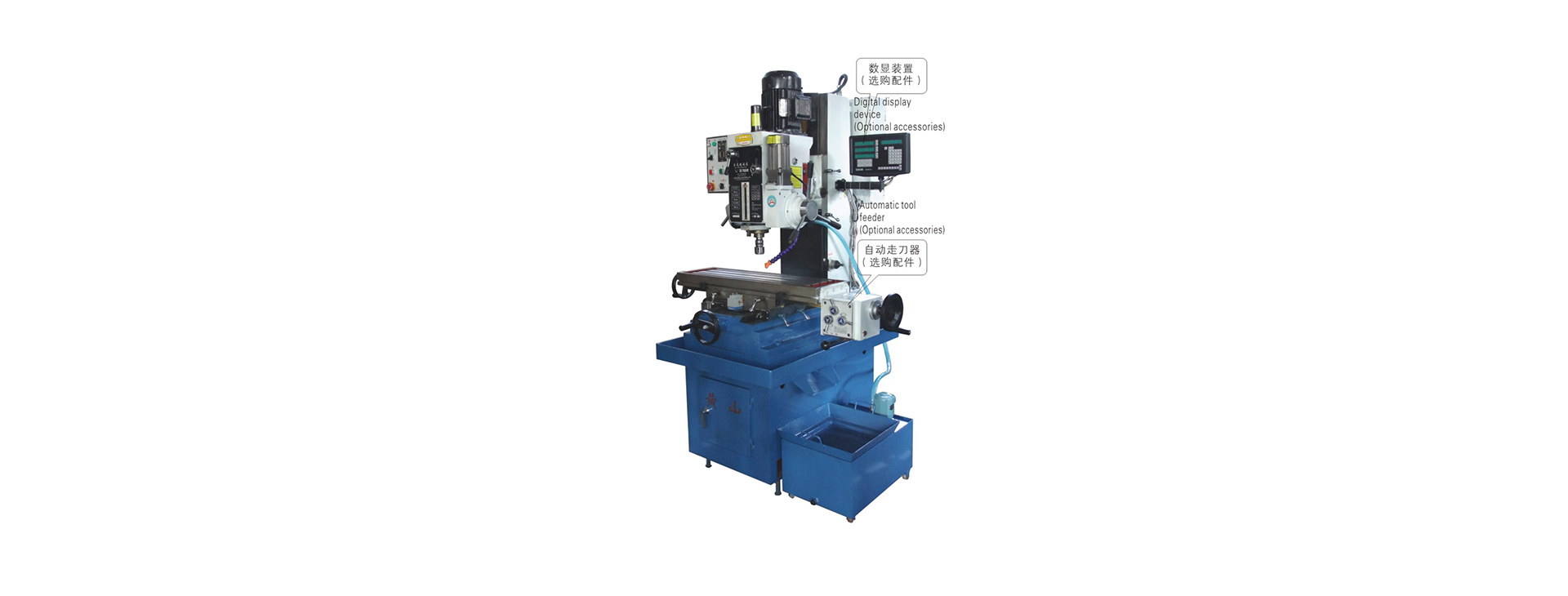

ZX7050(Z)(X)(S)

► Gear transmission, with drilling, milling and tapping functions
► With cooling and lighting system
► Unique automatic spindle feeding system, using independent external feed motor, electromagnetic clutch control, feed speed can be infinitely adjusted
► The spindle box can move up and down along the column and tilt ±45°
► The worktable can be fed longitudinally and has stroke protection
► CE-certified electrical components and intelligent controllers produced in Taiwan, China
► With short circuit and overload protection

Tell us about your application, operators, and work demands.
Our team will help you design the ideal solution to keep
your cost running at peak performance.

ENQUIRE ONLINE

Specifications

ModelZX7050(Z)(X)(S)
Maximum Drilling Diameter (mm)50/45
Maximum Horizontal Milling Width (mm)100
Maximum Vertical Milling Diameter (mm)32
Maximum Tapping Diameter (Castings/Steel Parts) (mm)M30
Maximum Spindle Travel (mm)Manual 150/Automatic 120
Spindle End Taper (mm)MT.4
Spindle Speed (r/min)0-125 stepless speed regulation
Distance from Spindle Axis to Column Surface (mm)325
Work Surface Size (mm)900*260
Workbench Travel (mm)550*270
(450*270)
Distance from Lower End of Spindle to Worktable (mm)45-480
Electric Motor (KW)2.2 (2.2/1.5)
Gross Weight/Net Weight (kg)900/800
Packing Size (mm)1450*1350*2100


Besides milling and drilling machine, are you interested in other drilling machines? Or perhaps a tapping machine is the ideal product for you?
