Drilling and Tapping Machine

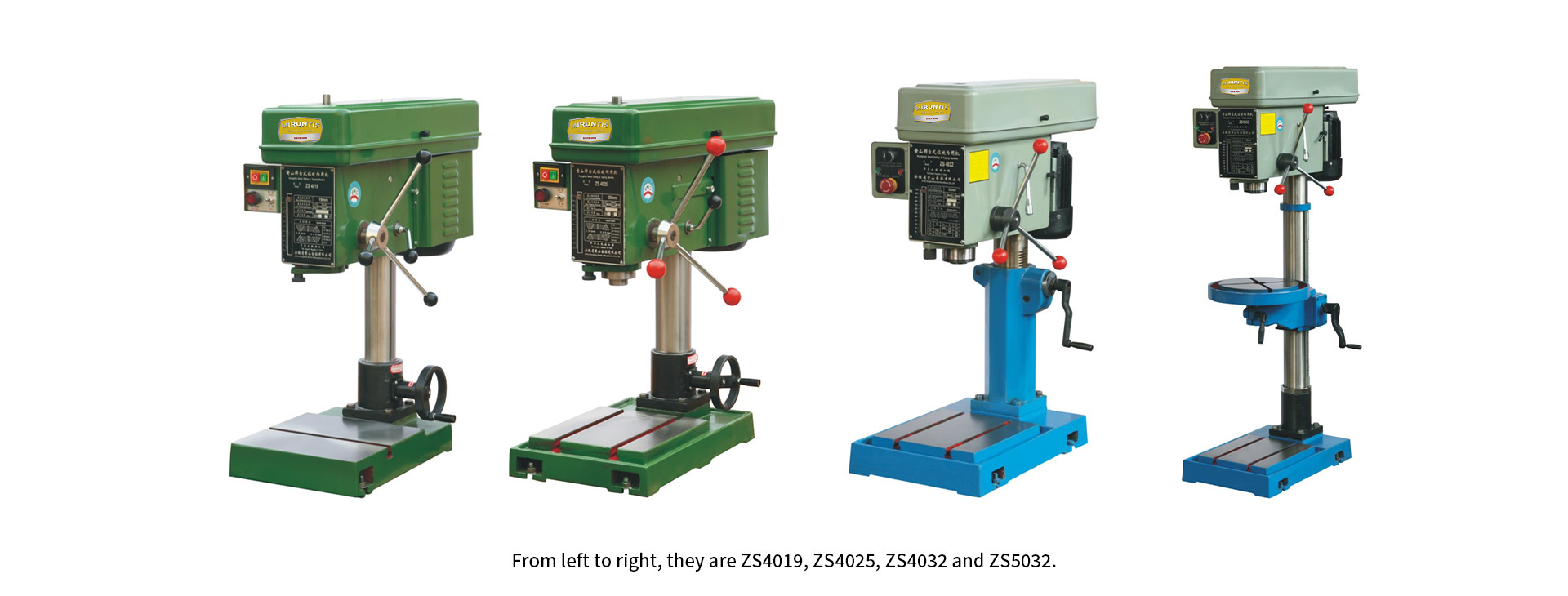

ZS4019, ZS4025, ZS4032 and ZS5032.

Tell us about your application, operators, and work demands.
Our team will help you design the ideal solution to keep
your cost running at peak performance.

Specifications

Model	ZS4019	ZS4025	ZS4032	ZS5032
Maximum Drilling Diameter (mm)	19	25	31.5	31.5
Maximum Tapping Diameter (Castings/Steel Parts) (mm)	M16/M12	M18/M14	M24/M20	M24/M20
Column Diameter (mm)	74	85	100	100
Maximum Spindle Travel (mm)	110	110	110	110
Spindle End Taper (mm)	MT.2	MT.3	MT.3	MT.3
Spindle Speed (r/min)	240-370-550-800-1200-1800-2700-3800	300-400-550-800-1200-1800-2450-3150	140-220-320-370-460-550-1100-1170-1780	140-220-320-370-460-550-1100-1170-1780
Work Surface Size (mm)	/	/	/	Φ320
Base Working Surface Size (mm)	320*314	300*280	320*350	320*350
Distance from Spindle Axis to Column Surface (mm)	198	192.5	235	235
Distance from Lower End of Spindle to Worktable (mm)	/	/	/	60-590
Distance from Lower End of Spindle to Base Working Surface (mm)	245-415	310-480	350-700	1015
Electric Motor (KW)	0.55	0.75	1.1	1.1
Gross Weight/Net Weight (kg)	120/105	125/110	250/215	320/270
Packing Size (mm)	800424812	800424962	9005261123	9005261723

Besides radial drilling machine, are you interested in other drilling machines? Or perhaps a tapping machine is the ideal product for you?

Talk to Our Team to Arrange a Personal Consultation Today
