Drilling and Tapping Machine

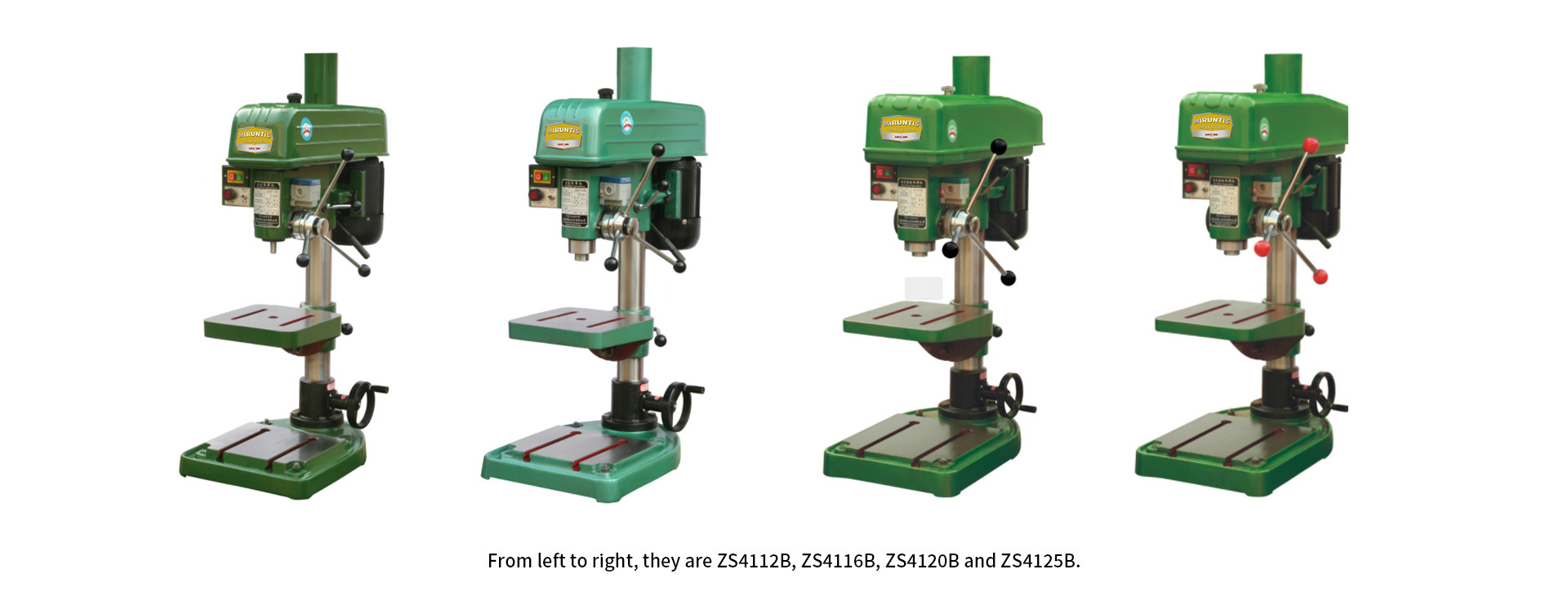

ZS4112B, ZS4116B, ZS4120B and ZS4125B.

Tell us about your application, operators, and work demands.
Our team will help you design the ideal solution to keep
your cost running at peak performance.

Specifications

Model	ZS4112B	ZS4116B	ZS4120B	ZS4125B
Maximum Drilling Diameter (mm)	12	16	20	25
Column Diameter (mm)	70	70	85	85
Maximum Spindle Travel (mm)	100	100	125	125
Spindle End Taper (mm)	B16	MT.2	MT.2	MT.3
Spindle Speed (r/min)	320-550-960-1700-2800	320-550-960-1700-2800	230-390-680-1230	230-390-680-1230
Work Surface Size (mm)	265*265	265*265	320*290	320*290
Base Working Surface Size (mm)	250*300	250*300	335*335	335*335
Distance from Spindle Axis to Column Surface (mm)	193	193	242.5	242.5
Distance from Lower End of Spindle to Worktable (mm)	0-255	0-255	0-280	0-265
Distance from Lower End of Spindle to Base Working Surface (mm)	250-500	250-500	280-560	265-545
Electric Motor (KW)	0.55	0.55	0.75	1.1
Gross Weight/Net Weight (kg)	115/100	115/100	160/140	160/140
Packing Size (mm)	800424962	800424962	8604761013	8604761013

Besides drilling and tapping machine, are you interested in other drilling machines? Or perhaps a tapping machine is the ideal product for you?

Talk to Our Team to Arrange a Personal Consultation Today
