Automatic Feed Drilling Machine

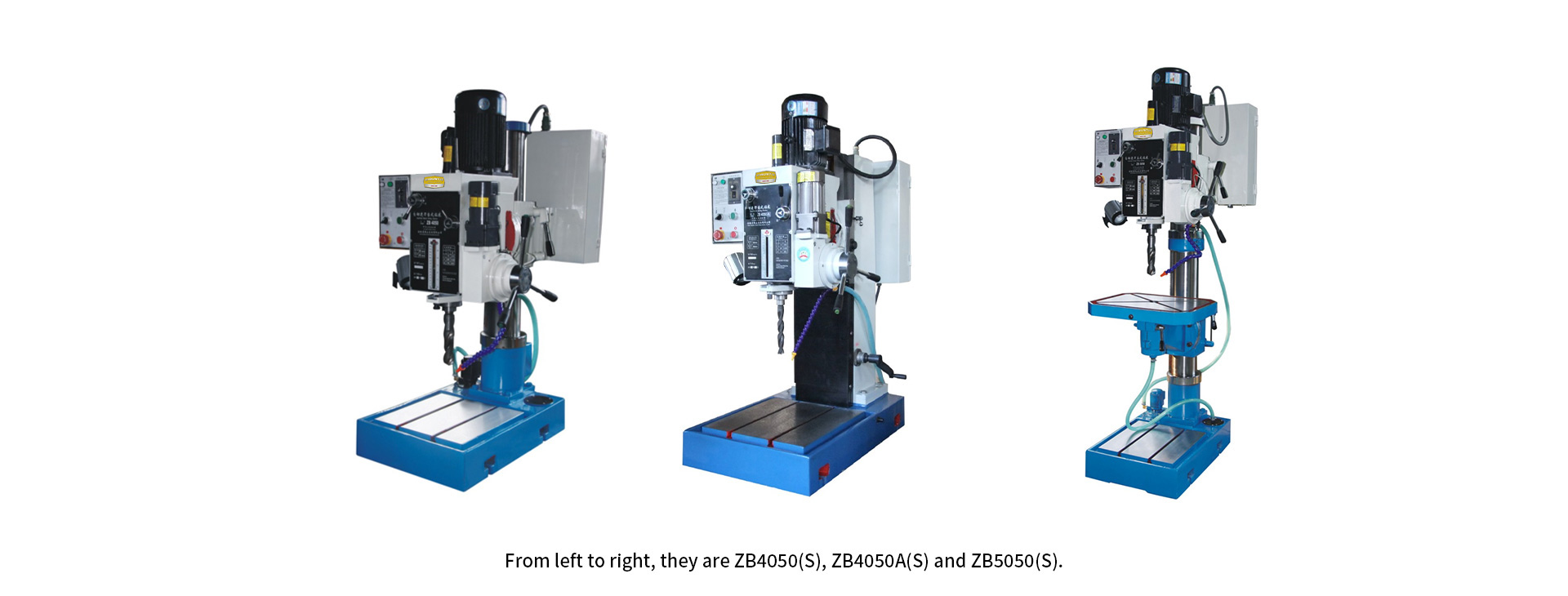

ZB4050(S), ZB4050A(S) and ZB5050(S).

► Gear transmission, with automatic feeding and tapping functions.
► With cooling system and lighting system.
► With short-circuit and overload protection functions.
► Powerful motor power, with sufficient processing capacity.

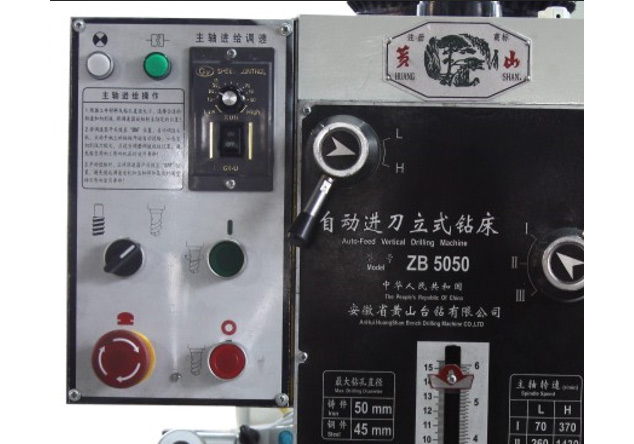

Stepless Speed Regulation: the feed speed can be adjusted steplessly, which is easy to operate;

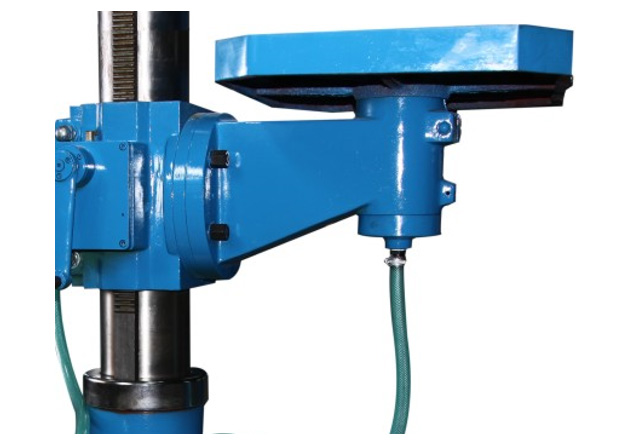

Lifting Device: The workbench (spindle box) can be manually raised and lowered, can rotate around the column ±180°, and can be tilted ±45°.

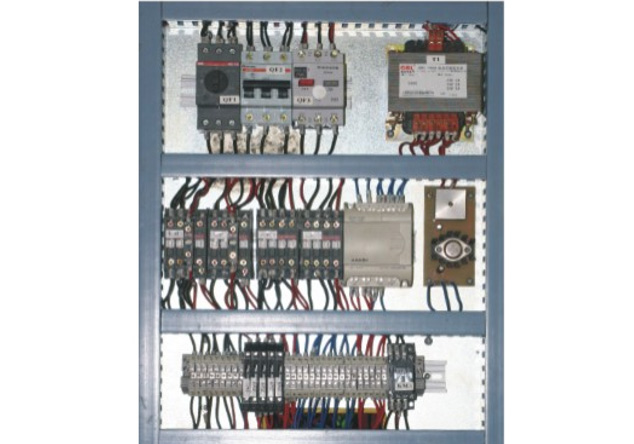

Qualified Electrical Components:Qualified Electrical Components: Use CE certified electrical components and intelligent controllers from Taiwan, China.

none

Tell us about your application, operators, and work demands.
Our team will help you design the ideal solution to keep
your cost running at peak performance.

ENQUIRE ONLINE

Specifications

ModelZB4050(S)
ZB4050A(S)
ZB5050(S)
Maximum Drilling Diameter (Castings/Steel Parts) (mm)50/4550/4550/45
Maximum Tapping Diameter (mm)M30M30M30
Column Diameter (mm)140140140
Maximum Spindle Travel (mm)Manual 150/Automatic 120Manual 150/Automatic 120Manual 150/Automatic 120
Spindle End Taper (mm)MT.4MT.4MT.4
Spindle Speed (r/min)70-150-260-370-825-1430    (45-100-170-245-550-950)70-150-260-370-825-1430    (45-100-170-245-550-950)70-150-260-370-825-1430    (45-100-170-245-550-950)
Spindle Automatic Feed Speed (mm/min)0-125 (Stepless speed regulation)0-125 (Stepless speed regulation)0-125 (Stepless speed regulation)
Work Surface Size (mm)//540*440
Base Working Surface Size (mm)415*400500*450415*400
Distance from Spindle Axis to Column Surface (mm)315325315
Distance from Lower End of Spindle to Worktable (mm)//0-607
Distance from Lower End of Spindle to Base Working Surface (mm)135-685220-670912-1200
Electric Motor (KW)2.2 (2.2/1.5)2.2 (2.2/1.5)2.2 (2.2/1.5)
Gross Weight/Net Weight (kg)500/425650/540700/600
Packing Size (mm)1100*726*14131200*726*15531100*726*2013
