CNC Drilling Machine

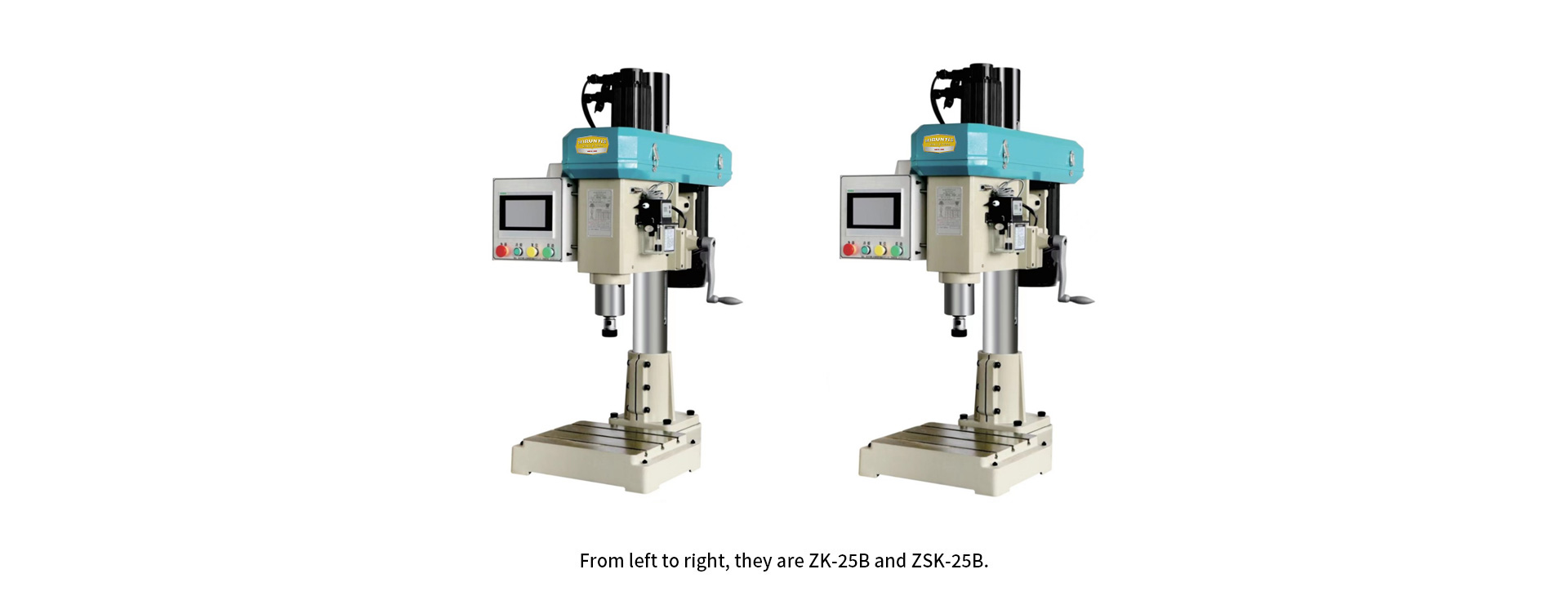

ZK-25B and ZSK-25B

Tell us about your application, operators, and work demands.
Our team will help you design the ideal solution to keep
your cost running at peak performance.

Specifications

Model	ZK-25B	ZK-35B	ZSK-25B	ZSK-35B
Maximum Drilling Diameter (Castings/Steel Parts) (mm)	25/20	35/25	25/20	25/20
Maximum Tapping Diameter (Castings/Steel Parts) (mm)	/	/	M20/M16	M24/M20
Spindle Diameter (mm)	75	95	75	95
Maximum Spindle Travel (mm)	140	180	140	180
Spindle End Taper (mm)	MT.3	MT.4	MT.3	MT.4
Spindle Speed Level	4	4	Stepless Speed Regulation	Stepless Speed Regulation
Spindle Speed (r/min)	650-920-1760-1820	650-920-1760-1820	1-3000	1-3000
Column Diameter (mm)	95	118	95	118
Feed Servo Motor Power (kw)	1	1.8	1	1.8
Feed Screw Model	2505	3205	2505	3205
Repeat Positioning Accuracy	0.01	0.01	0.01	0.01
Base Working Surface Size (mm)	350*330	400*370	350*330	400*370
Distance from Spindle Axis to Column Surface (mm)	600	800	600	800
Distance from the Lower End of the Spindle to the Working Surface of the Base (mm)	300	300	300	300
Main Motor Power (kw)	2.2(4 Pole)	2.2(6 Pole)	Servo 2.2	Servo 3.7
Gross Weight/Net Weight (kg)	275/235	390/350	275/235	390/350
Packing Size (mm)	9007201150	9007201150	9008001250	9008001250

Besides CNC drilling machine, are you interested in other drilling machines? Or perhaps a tapping machine is the ideal product for you?
