CNC Drilling Machine

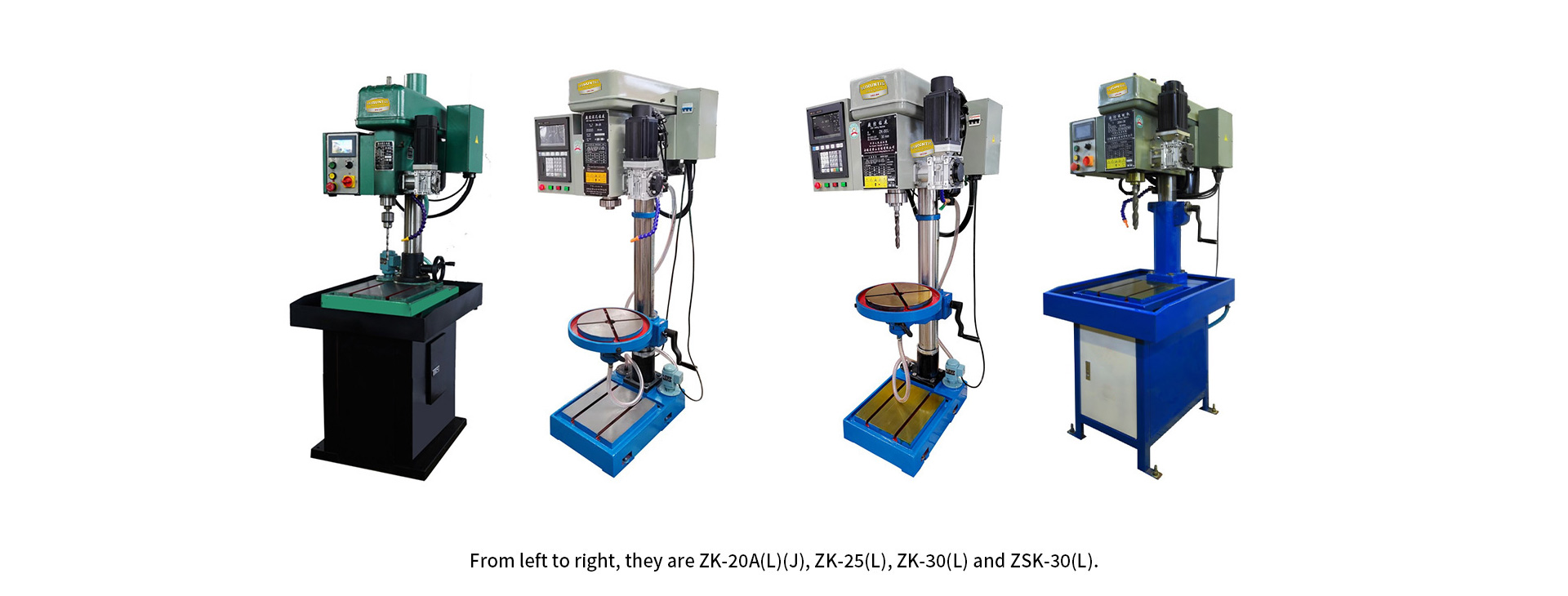

ZK-20A(L)(J), ZK-25(L), ZK-30(L) and ZSK-30(L)..

Tell us about your application, operators, and work demands.
Our team will help you design the ideal solution to keep
your cost running at peak performance.

Specifications

Model	ZK-20A(L)(J)	ZK-25(L)	ZK-30(L)	ZSK-30(L)
Maximum Drilling Diameter (Castings/Steel Parts) (mm)	20/16	25/20	30/25	30/25
Maximum Tapping Diameter (Casting/Steel Parts) (mm)	/	/	/	M24/M20
Column Diameter (mm)	85	85	100	100
Maximum Spindle Travel (mm)	170	240	130	130
Spindle End Taper (mm)	MT.2	MT.3	MT.3	MT.3
Spindle Speed (r/min)	340-570-1000-1800	216-340-494-550-712-770-1680-1800-2730	140-220-320-370-460-550-1000-1170-1780	140-220-320-370-460-550-1000-1170-1780
Feed Motor	Servo motor 4N.m (1:20)	Servo motor 6N.m (1:20)	Servo motor 6N.m (1:20)	Servo motor 6N.m (1:20)
Spindle Rapid Moving Speed (mm/min)	≤7500	≤7500	≤7500	≤7500
Positioning Accuracy	0.05	0.06	0.06	0.06
Repeat Positioning Accuracy	0.03	0.03	0.03	0.03
Operating System	Single Axis (Servo)	Single Axis (Servo)	Single Axis (Servo)	Single Axis (Servo)
Base Work Surface Size (mm)	335*335	335*335	320*350	320*350
Distance from Spindle Axis to Column Surface (mm)	242.5	242.5	235	235
Distance from Lower End of Spindle to Worktable (mm)	With Workbench: 320-600 Without Workbench: 170-450	Vertical: 1000 Desktop: 295-645	Vertical: 1015 Desktop: 350-700	Vertical: 1000 Desktop: 350-700
Main Motor Power (kw)	1.1	1.1	1.1	1.1
Gross Weight/Net Weight (kg)	230/180	360/320	350/310	355/315
Packing Size (mm)	9007561813	9007561813	9007561813	9007561813
L:With cooling function J:With rack
