CNC Drilling Machine

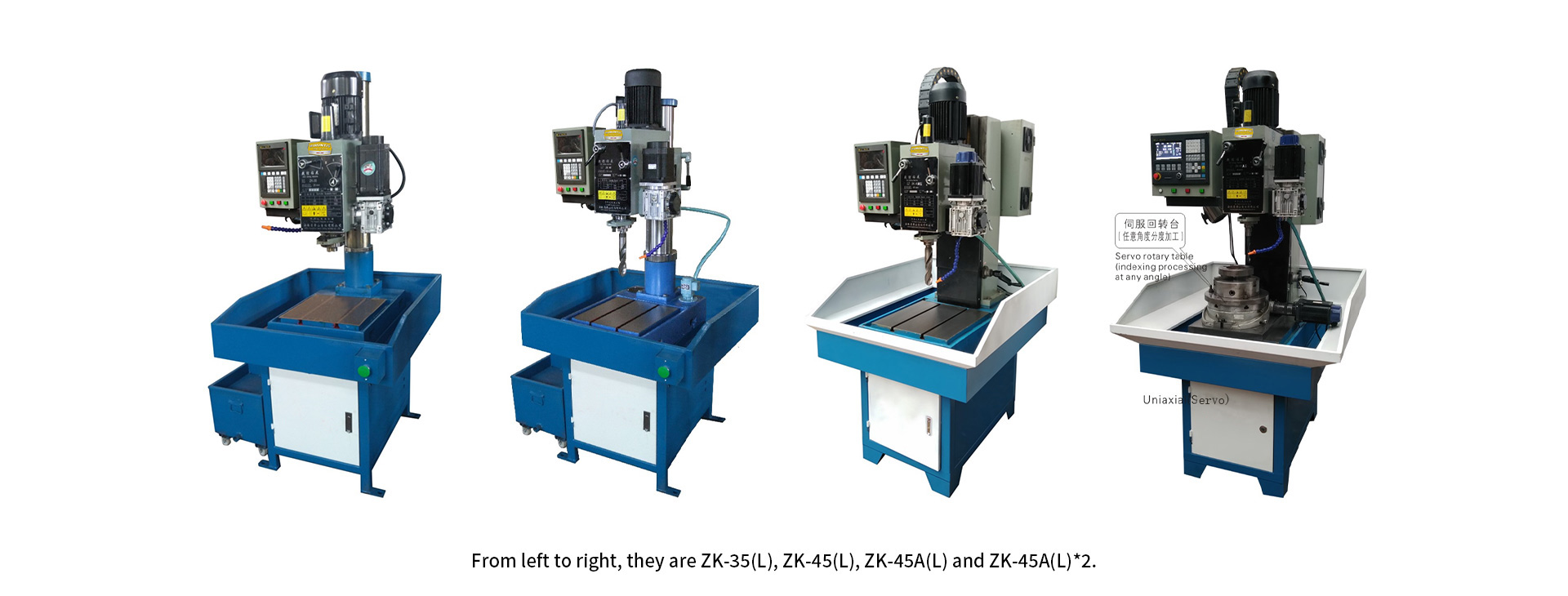

ZK-35(L), ZK-45(L), ZK-45A(L) and ZK-45A(L)*2

Tell us about your application, operators, and work demands.
Our team will help you design the ideal solution to keep
your cost running at peak performance.

Specifications

Model	ZK-35(L)	ZK-45(L)	ZK-45A(L)	ZK-45A(L)*2
Maximum Drilling Diameter (Castings/Steel Parts) (mm)	30/25	30/25	45/40	45/40
Maximum Spindle Travel (mm)	110	140	140	140
Spindle End Taper (mm)	MT.4	MT.4	MT.4	MT.4
Spindle Speed (r/min)	95-170-280-540-960-1600	70-150-260-370-825-1430	70-150-260-370-825-1430	70-150-260-370-825-1430
Feed Motor	Servo motor 7.7N.m (1:20)	Servo motor 10N.m (1:20)	Servo motor 10N.m (1:20)	Servo motor 10N.m (1:20)
Positioning Accuracy	0.06	0.06	0.06	0.06
Repeat Positioning Accuracy	0.03	0.03	0.03	0.03
Operating System	Single Axis (Servo)	Single Axis (Servo)	Single Axis (Servo)	Double Axis (Servo)
Base Work Surface Size (mm)	350*380	400*415	500/450	500/450
Distance from Spindle Axis to Column Surface (mm)	260	315	325	325
Distance from Lower End of Spindle to Worktable (mm)	90-580	135-685	220-670	220-670
Main Motor Power (kw)	1.5	2.2	2.2	2.2
Gross Weight/Net Weight (kg)	320/280	510/460	650/560	700/600
Packing Size (mm)	9008081214	10008881414	15008881553	15008881553

Besides CNC drilling machine, are you interested in other drilling machines? Or perhaps a tapping machine is the ideal product for you?

Talk to Our Team to Arrange a Personal Consultation Today
