Multi-Axis

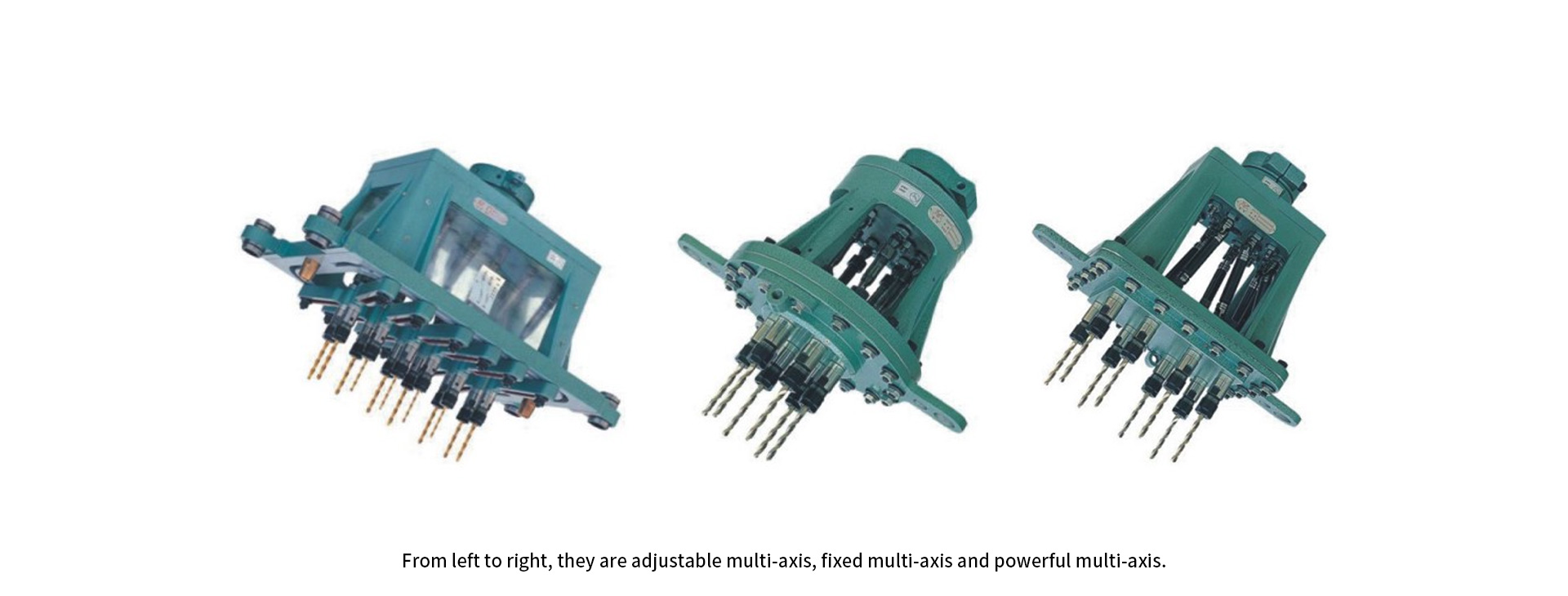

Adjustable model, fixed model and powerful model

► The drilling machine equipped with a multi-axis device can perform drilling, reaming, expanding and tapping on hole parts. It can process 2-12 holes at a time, which can double the efficiency. We can help users choose the appropriate multi-axis device according to the characteristics and requirements of the parts they process, and design and manufacture corresponding fixtures for users.

Tell us about your application, operators, and work demands.
Our team will help you design the ideal solution to keep
your cost running at peak performance.

ENQUIRE ONLINE

Specifications

ModelT108T125FA135FB170U110U165U200U100*165U120*200
Minimum Distance between Two Axes (mm)182517341313181818
Maximum Distance between Two Axes (mm)108125135170110165200100*165120*200
Drilling Capacity(mm)0.5~70.5~130.5~130.5~130.5~100.5~130.5~130.5~130.5~13
Number of Axes222~62~102~62~104~123~84~12
Speed Ratio1:011:011:011:011:1 1:21:1 1:21:1 1:21:1 1:21:1 1:2
Applicable Drilling MachinesZ4116B  Z4120B/25B  JZB412/25  Z5025A  Z4032/5032  Z4040/5040  JZB4032/5032  ZB4040/5040  Z4050/5050
