Drilling and Milling Machine

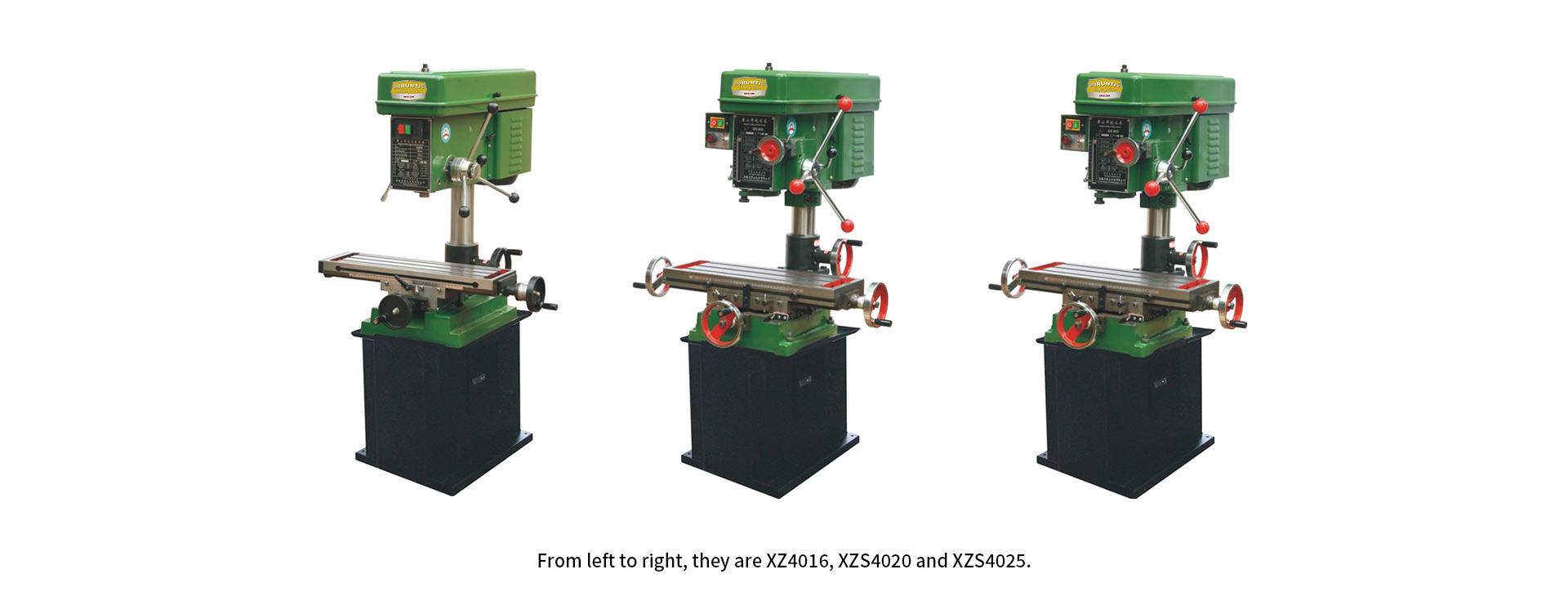

XZ4016, XZS4020 and XZS4025.

Tell us about your application, operators, and work demands.
Our team will help you design the ideal solution to keep
your cost running at peak performance.

Specifications

Model	XZ4016	XZS4020	XZS4025
Maximum Drilling Diameter (mm)	16	20	25
Maximum Horizontal Milling Width (mm)	40	50	63
Maximum Vertical Milling Diameter (mm)	8	12	13
Maximum Tapping Diameter (Castings/Steel Parts) (mm)	/	M14/M10	M16/M12
Maximum Flat Grinding Wheel Diameter (mm)	/	/	/
Maximum Spindle Travel (mm)	110	110	110
Spindle End Taper (mm)	MT.2	MT.2	MT.3
Spindle Speed (r/min)	300-400-550-800-1200-1800-2450-3150	300-400-550-800-1200-1800-2450-3150	300-400-550-800-1200-1800-2450-3150
Distance from Spindle Axis to Column Surface (mm)	198	198	192.5
Work Surface Size (mm)	450*160	550*200	550*200
Workbench Travel (mm)	380*140	360*160	360*160
Distance from Lower End of Spindle to Worktable (mm)	150-320	200-375	290-465
Electric Motor (KW)	0.55	0.55	0.75
Gross Weight/Net Weight (kg)	170/140	238/218	245/225
Packing Size (mm)	900730915	10007801035	78010001035

Besides milling and drilling machine, are you interested in other drilling machines? Or perhaps a tapping machine is the ideal product for you?

Talk to Our Team to Arrange a Personal Consultation Today
