Radial Drilling Machine

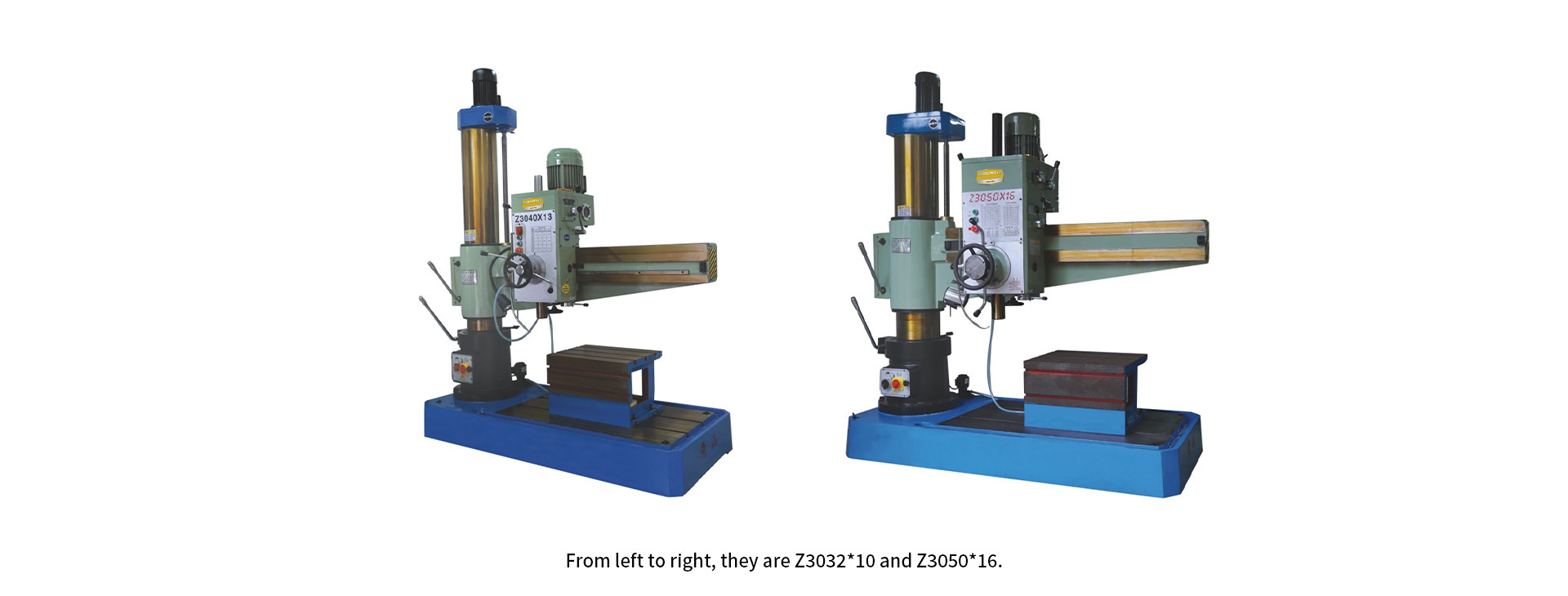

Z3032*10, Z3040*13 and Z3050*16.

► Mechanical clamping, mechanical speed change
► Automatic feed, travel limit

Tell us about your application, operators, and work demands.
Our team will help you design the ideal solution to keep
your cost running at peak performance.

Specifications

Model	Z3032*10	Z3040*13	Z3050*16
Maximum Drilling Diameter (Castings/Steel Parts) (mm)	31.5/25	40/32	50/45
Column Diameter (mm)	Φ200 (single)	Φ230	Φ280
Distance from Spindle End to Worktable Surface (mm)	200-1050	360-1220	200-1050
Distance from Spindle End to Column Generatrix (mm)	300-900	330-1200	360-1450
Spindle Travel (mm)	200	200	280
Spindle End Taper (mm)	MT.4	MT.4	MT.5
Spindle Speed Range (r.p.m)	80-1220	80-1220	78-1100
Spindle Speed Level	6	12	6
Spindle Feed Range (r/min)	0.1-0.25	0.1-0.25	0.1-0.56
Spindle Feed Level	3	3	6
Rocker Arm Rotation Angle (°)	± 180	± 180	± 90
Main Motor Power (kw)	2.2	2.2/1.5	4
Lifting Motor Power (kw)	1.1	1.1	1.5
Machine Weight (kg)	800	1300	2300
Dimension (mm)	15507502170	18008202370	22009002430
