Position:Home > Products > Bench Drilling Machine >

Industrial Bench Drill

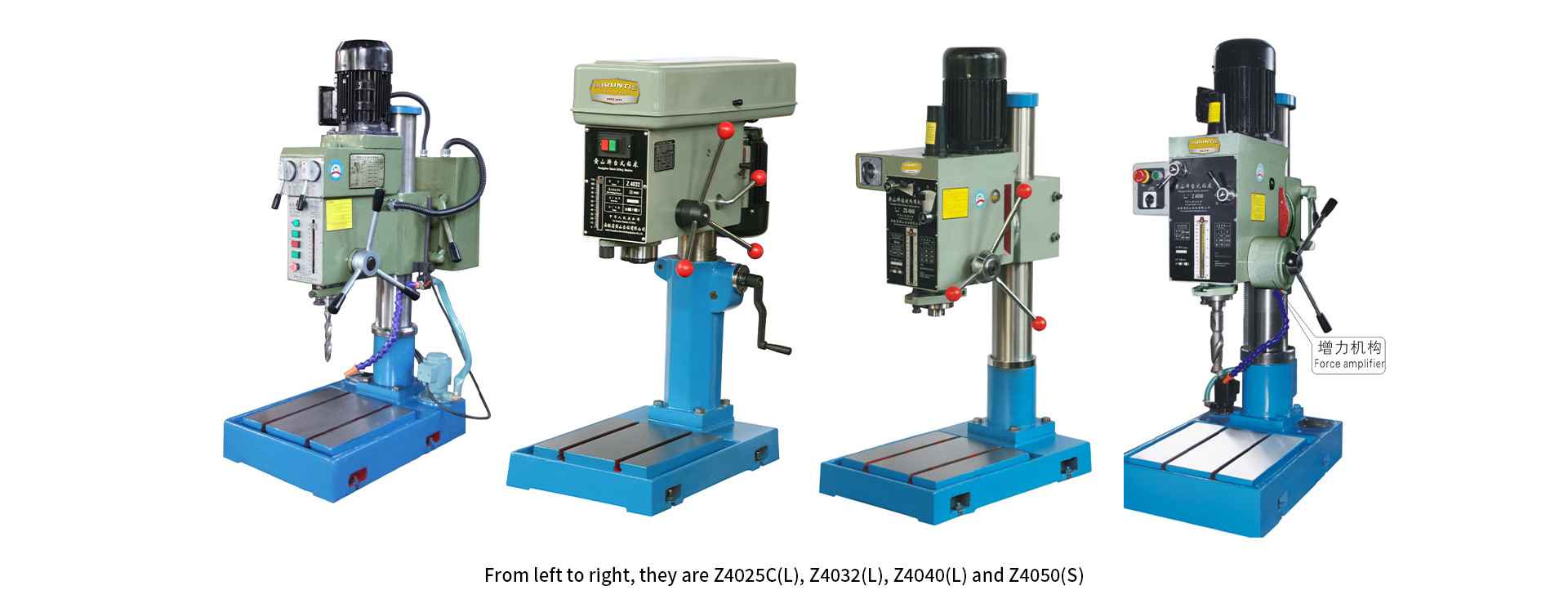

Z4025C(L), Z4032(L), Z4040(L) and Z4050(S)

Tell us about your application, operators, and work demands.
Our team will help you design the ideal solution to keep
your cost running at peak performance.

Specifications

Model	Z4025C (L)	Z4032 (L)	Z4040 (L)	Z4050 (S)
Maximum Drilling Diameter (mm)	25	31.5/25	40/28	50/45
Column Diameter (mm)	100	100	115	140
Maximum Spindle Travel (mm)	110	110	120	150
Spindle End Taper (mm)	MT.3	MT.3	MT.4	MT.4
Spindle Speed (r/min)	125-215-435-825-1400-2825	140-220-320-370-460-550-1100-1170-1780	95-170-280-540-960-1600	70-150-260-370-825-1430 (45-100-170-245-550-950)
Work Surface Size (mm)	/	/	/	/
Base Working Surface Size (mm)	320*350	320*350	350*380	400*415
Distance from Spindle Axis to Column Surface (mm)	240	235	260	315
Distance from Lower End of Spindle to Worktable (mm)	/	/	/	/
Distance from Lower End of Spindle to Base Working Surface (mm)	160-550	350-700	90-580	135-685
Electric Motor (KW)	0.75	1.1	1.1	2.2 (2.2/1.5)
Gross Weight/Net Weight (kg)	285/250	250/215	248/220	470/405
Packing Size (mm)	8505261113	9005261123	7806781214	9007261413
L: Equipped with Cooling System; S: Two-speed Motor

Besides industrial type bench drilling machines, are you interested in other drilling machines? Or perhaps a tapping machine is the ideal product for you?
