Automatic Feed Drilling Machine

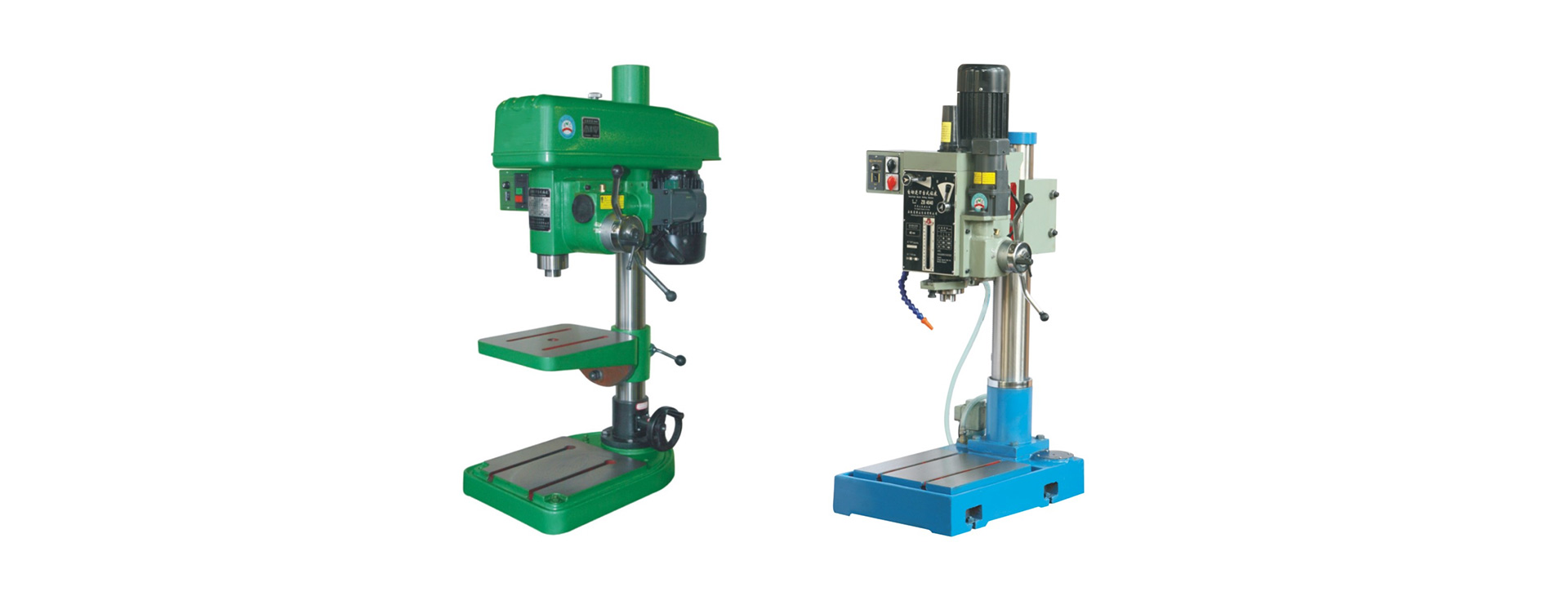

Z4032B and Z5032B

► With cooling system and lighting system.
► With short-circuit and overload protection functions.
► Powerful motor power, with sufficient processing capacity.

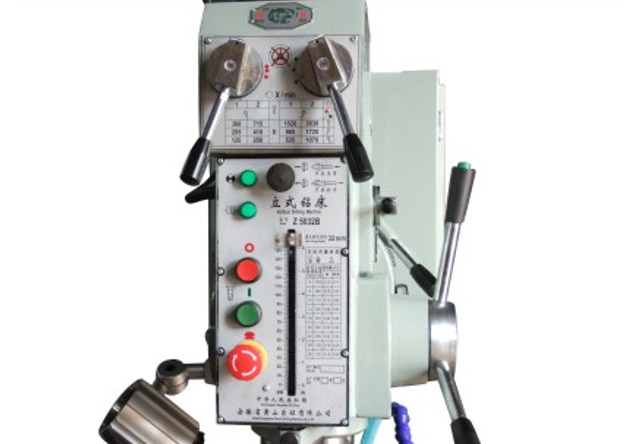

Dual-speed Motor: Equipped with dual-speed motor to ensure wide speed range.

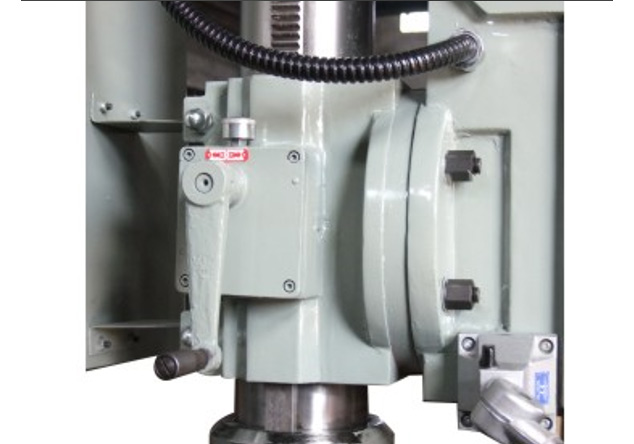

Lifting Device: The workbench (spindle box) can be manually raised and lowered, can rotate around the column ±180°, and can be tilted ±45°.

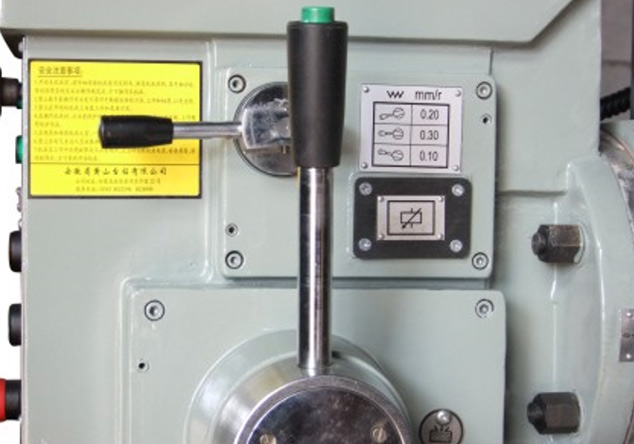

Feed Speed Regulating Device: gear transmission, with automatic feeding and tapping functions.

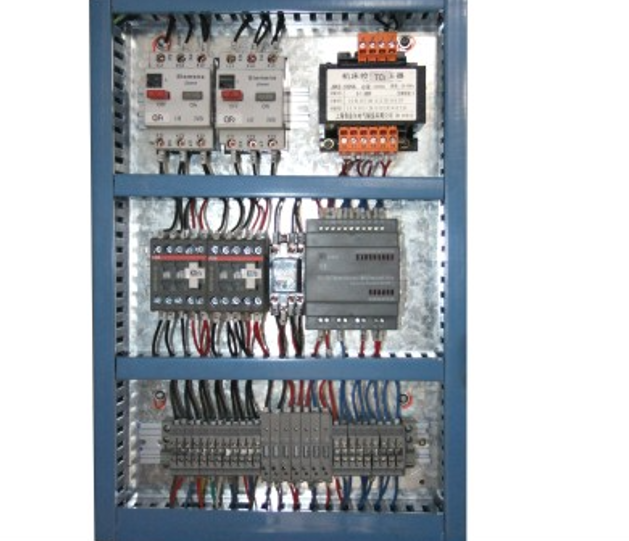

Qualified Electrical Components: Use CE certified electrical components and intelligent controllers from Taiwan, China.

Tell us about your application, operators, and work demands.
Our team will help you design the ideal solution to keep
your cost running at peak performance.

ENQUIRE ONLINE

Specifications

ModelZ4032B
Z5032B
Maximum Drilling Diameter (Castings/Steel Parts) (mm)31.5/2531.5/25
Maximum Tapping Diameter (Castings/Steel Parts) (mm)M22M22
Column Diameter (mm)120120
Maximum Spindle Travel (mm)Manual 160/Automatic 140Manual 160/Automatic 140
Spindle End Taper (mm)MT.4MT.4
Spindle Speed (r/min)125-205-250-360-410-535-715-865-1070-1520-1720-3030125-205-250-360-410-535-715-865-1070-1520-1720-3030
Spindle Automatic Feed Speed (mm/min)0.1 0.2 0.3/30.1 0.2 0.3/3
Work Surface Size (mm)/500*420
Base Working Surface Size (mm)350*380350*380
Distance from Spindle Axis to Column Surface (mm)300300
Distance from Lower End of Spindle to Worktable (mm)/0-730
Distance from Lower End of Spindle to Base Working Surface (mm)150-620970-1260
Electric Motor (KW)1/1.21/1.2
Gross Weight/Net Weight (kg)460/420550/500
Packing Size (mm)1050*626*12531050*626*2053
