Position:Home > Products > Drilling Machine >

Automatic Feed Drilling Machine

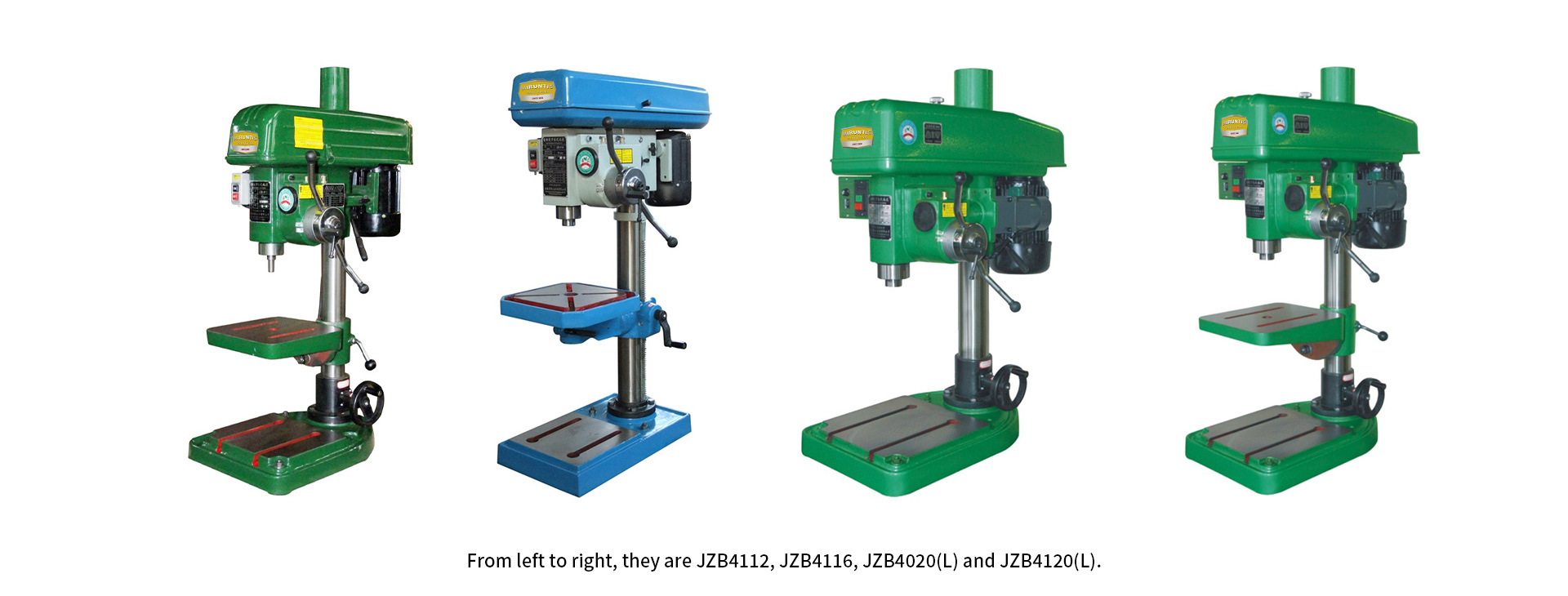

JZB4112, JZB4116, JZB4020(L) and JZB4120(L).

Tell us about your application, operators, and work demands.
Our team will help you design the ideal solution to keep
your cost running at peak performance.

Specifications

Model	JZB4112	JZB4116	JZB4020/25（L)		JZB4020/25（L)
Maximum Drilling Diameter (mm)	12	16	20/16	25/20	20/16	25/20
Column Diameter (mm)	70	80	85		85
Maximum Spindle Travel (mm)	Manual 100/Automatic 90	Manual 100/Automatic 90	Manual 110/Automatic 90		Manual 110/Automatic 90
Spindle End Taper (mm)	B16	MT.2	MT.2	MT.3	MT.2	MT.3
Spindle Speed (r/min)	480-800-1400-2440-4100	260-400-460-950-1600-2100	230-390-680-1230		230-390-680-1230
Spindle Automatic Feed Speed (mm/r)	0.05, 0.08, 0.20/3	0.08, 0.1, 0.14, 0.2/4	0-110 (Stepless speed regulation)		0-110 (Stepless speed regulation)
Work Surface Size (mm)	265*265	230*230	/		290*320
Base Working Surface Size (mm)	250*300	260*260	335*335		335*335
Distance from Spindle Axis to Column Surface (mm)	193	208.5	242.5		242.5
Distance from Lower End of Spindle to Worktable (mm)	0-215	0-410	/		0-380
Distance from Lower End of Spindle to Base Working Surface (mm)	205-460	576	210-410		380-660
Electric Motor (KW)	0.55	0.75	0.75	1.1	0.75	1.1
Gross Weight/Net Weight (kg)	140/115	140/115	160/140		180/160
Packing Size (mm)	8604761013	8604761150	860526893		8605261123

Besides automatic feed drilling machine, are you interested in other drilling machines? Or perhaps a tapping machine is the ideal product for you?

Talk to Our Team to Arrange a Personal Consultation Today
