Position:Home > Products > Bench Drilling Machine >

Light Bench Drill

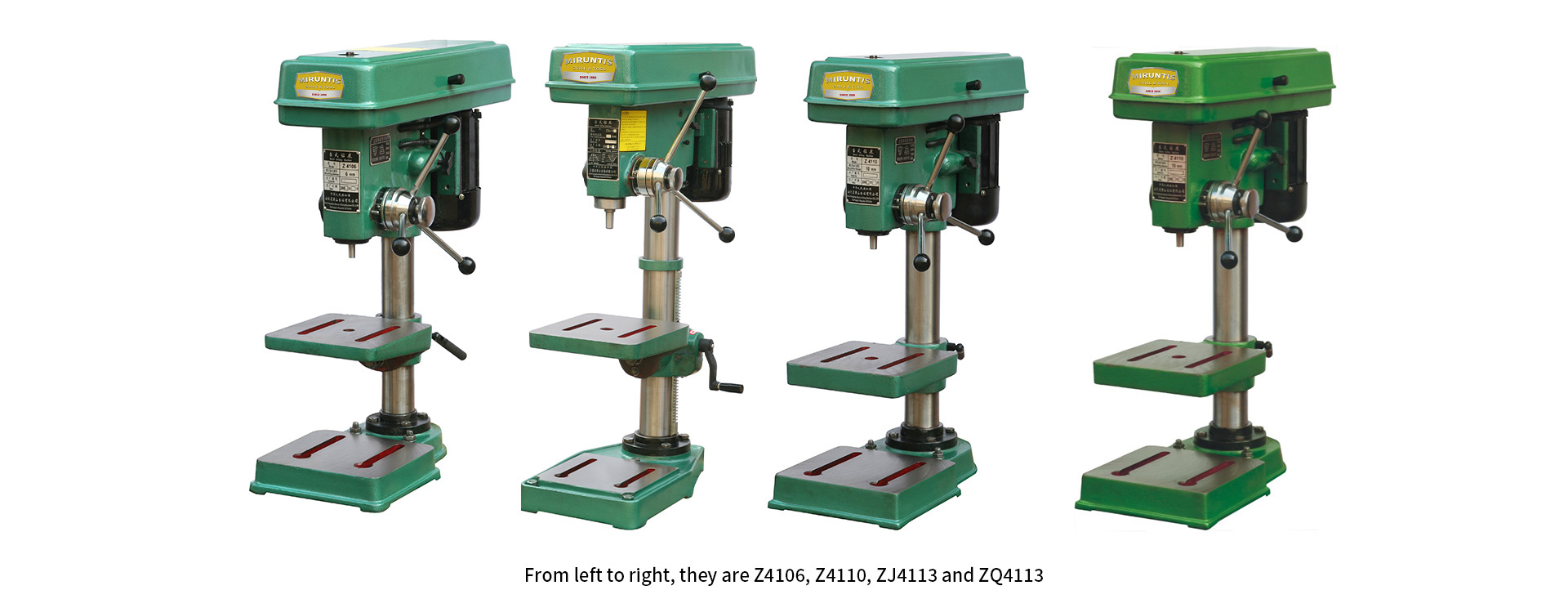

Z4106, Z4110, ZJ4113 and ZQ4113

Tell us about your application, operators, and work demands.
Our team will help you design the ideal solution to keep
your cost running at peak performance.

Specifications

Model	Z4106	Z4110	ZJ4113	ZQ4113
Maximum Drilling Diameter (mm)	6	10	13	13
Column Diameter (mm)	50	57	57	71
Maximum Spindle Travel (mm)	80	80	80	85
Spindle End Taper (mm)	B10	B12	B16	B16
Spindle Speed (r/min)	800-1600-2400-5600	800-1600-2400-5600	800-1600-2400-5600	480-800-1400-2400
Work Surface Size (mm)	180*180	200*200	200*200	220*250
Base Working Surface Size (mm)	200*180	220*200	220*200	210*210
Distance from Spindle Axis to Column Surface (mm)	115	131.5	131.5	192.5
Distance from Lower End of Spindle to Worktable (mm)	0-230	0-275	0-265	65-305
Distance from Lower End of Spindle to Base Working Surface (mm)	320	385	375	475
Electric Motor (KW)	0.25	0.37	0.55	0.37
Gross Weight/Net Weight (kg)	50/35	60/45	60/45	100/85
Packing Size (mm)	550324762	600384912	600384912	8004241012

Besides light bench drilling machines, are you interested in other drilling machines? Or perhaps a tapping machine is the ideal product for you?

Talk to Our Team to Arrange a Personal Consultation Today
