CNC Drilling Machine

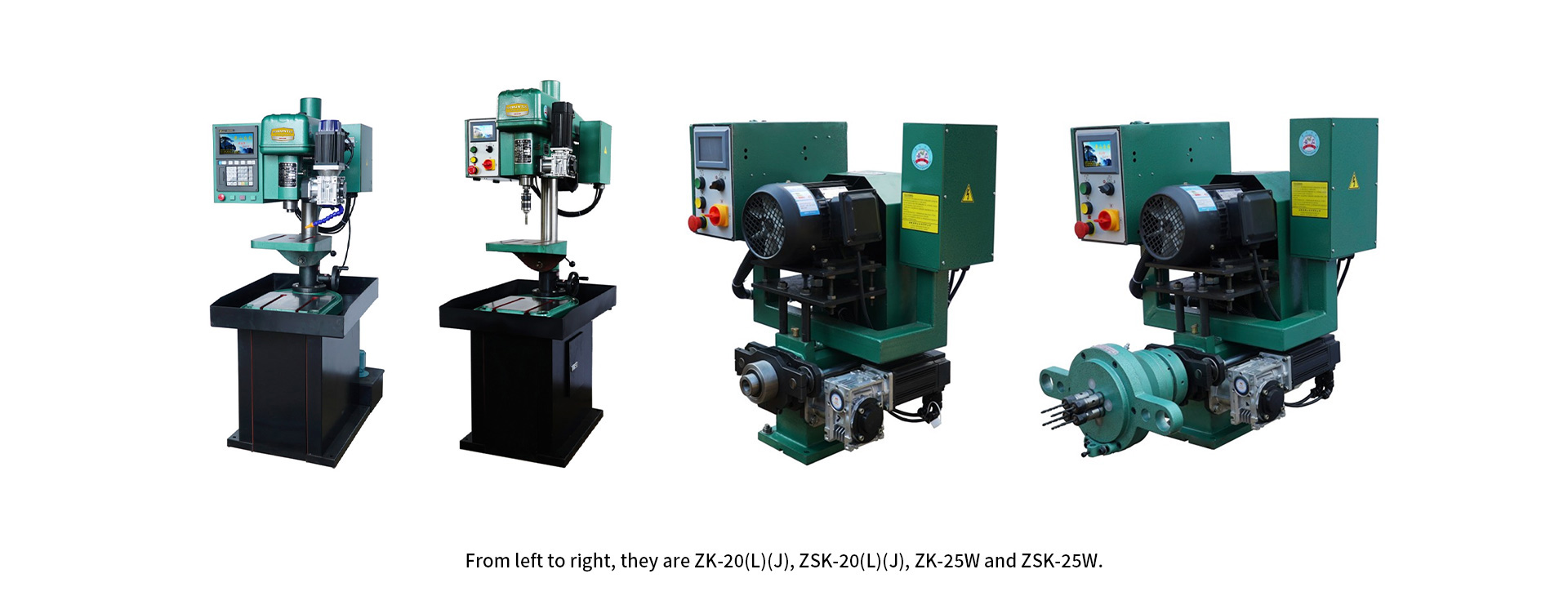

ZK-20(L)(J), ZSK-20(L)(J), ZK-25W and ZSK-25W.

Tell us about your application, operators, and work demands.
Our team will help you design the ideal solution to keep
your cost running at peak performance.

Specifications

Model	ZK-20(L)(J)	ZSK-20(L)(J)	ZK-25W	ZSK-25W
Maximum Drilling Diameter (Castings/Steel Parts) (mm)	20/16	20/16	25/20	25/20
Maximum Tapping Diameter (Castings/Steel Parts) (mm)	/	M20/M16	/	M20/M16
Maximum Spindle Travel (mm)	110	110	110	110
Spindle End Taper (mm)	MT.2	MT.2	MT.3	MT.3
Spindle Speed (r/min)	340-570-1000-1800	230-390-680-1230	340-570-1000-1800	230-390-680-1230
Feed Motor	Servo motor 4N.m (1:20)	Servo motor 4N.m (1:20)	Servo motor 4N.m (1:20)	Servo motor 4N.m (1:20)
Spindle Rapid Moving Speed (mm/min)	≤7500	≤7500	≤7500	≤7500
Positioning Accuracy	0.05	0.05	0.05	0.05
Repeat Positioning Accuracy	0.03	0.03	0.03	0.03
Operating System	Single Axis (Servo)	Single Axis (Servo)	Single Axis (Servo)	Single Axis (Servo)
Distance from Lower End of Spindle to Worktable (mm)	With Workbench: 250-530 Without Workbench: 220-420	With Workbench: 250-530 Without Workbench: 180-380	164	164
Main Motor Power (kw)	1.1	0.75	1.1	1.1
Gross Weight/Net Weight (kg)	230/180	230/180	150/120	155/125
Packing Size (mm)	9607261663	9607261663	550424680	550424680

Besides CNC drilling machine, are you interested in other drilling machines? Or perhaps a tapping machine is the ideal product for you?

Talk to Our Team to Arrange a Personal Consultation Today
