MIRUNTIS Machine CO., LTD

info@miruntismachine.com

Position:Home > Products > Drilling Machine >

Automatic Feed Drilling Machine

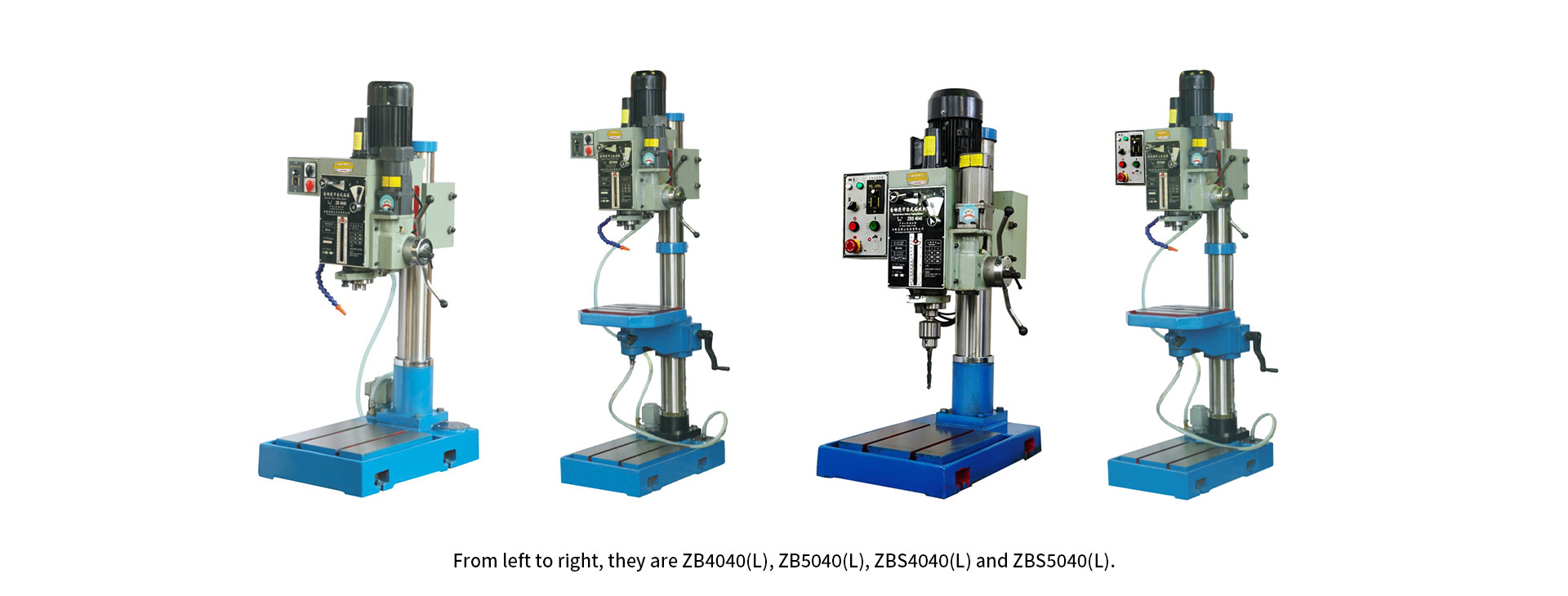

ZB4040(L), ZB5040(L), ZBS4040(L) and ZBS5040(L).

Tell us about your application, operators, and work demands.
Our team will help you design the ideal solution to keep
your cost running at peak performance.

Specifications

Model	ZB4040 (L)		ZB5040 (L)		ZBS4040 (L)		ZBS5040 (L)
Maximum Drilling Diameter (Castings/Steel Parts) (mm)	40/28		40/28		40/28		40/28
Column Diameter (mm)	115		115		115		115
Maximum Spindle Travel (mm)	Manual 120/Automatic 80		Manual 120/Automatic 80		Manual 120/Automatic 80		Manual 120/Automatic 80
Spindle End Taper (mm)	MT.4		MT.4		MT.4		MT.4
Spindle Speed (r/min)	95-170-280-540-960-1600		95-170-280-540-960-1600		95-170-280-540-960-1600		95-170-280-540-960-1600
Spindle Automatic Feed Speed (mm/min)	0-103(Stepless speed regulation)		0-103 (Stepless speed regulation)		0-103(Stepless speed regulation)		0-103 (Stepless speed regulation)
Work Surface Size (mm)	/		320*320 (Φ320)		/		320*320 (Φ320)
Base Working Surface Size (mm)	350*380		350*380		350*380		350*380
Distance from Spindle Axis to Column Surface (mm)	260		260		260		260
Distance from Lower End of Spindle to Worktable (mm)	/		0-720		/		0-720
Distance from Lower End of Spindle to Base Working Surface (mm)	90-580		765-1080		90-580		765-1080
Electric Motor (KW)	1.1		1.1		1.1		1.1
Gross Weight/Net Weight (kg)	260/230		360/310		260/230		360/310
Packing Size (mm)	7806781214		7806781714		7806781214		7806781714
Maximum Tapping Diameter (Castings/Steel Parts) (mm)					M30/M24		M30/M24
L: Equipped with cooling system					With tapping function

Besides automatic feed drilling machine, are you interested in other drilling machines? Or perhaps a tapping machine is the ideal product for you?

Talk to Our Team to Arrange a Personal Consultation Today
